Levenhuk

Levenhuk M1200 PLUS Digital Camera

Levenhuk M1200 PLUS Digital Camera

£564.00
£564.00
Sale Sold out
Taxes is not included. Shipping calculated at checkout.

In stock

🚚 Estimated delivery: 3 days

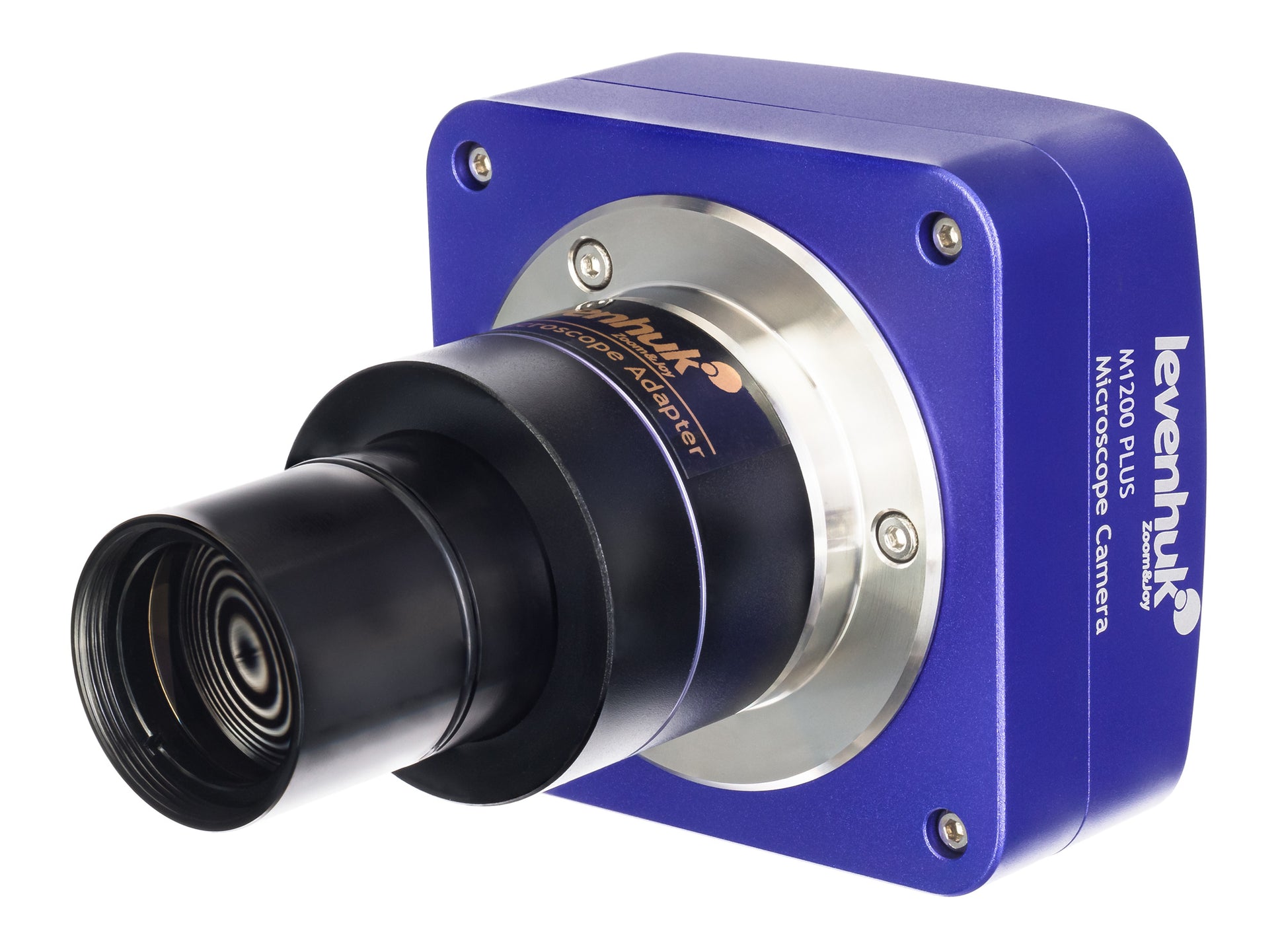

Levenhuk M1200 PLUS Digital Camera

Advanced digital camera for microscopes

The Levenhuk M1200 PLUS 12MP Digital Camera produces detailed, high-resolution photographs and videos of observed samples through any microscope. The camera is installed in an eyepiece tube of 23.2mm (with an adapter that can be installed in eyepiece tubes of 30mm and 30.5mm). It is a general-purpose instrument that is suitable for both professional research and personal use. The camera can also be used as a digital eyepiece to live stream the study process on a computer screen.

The camera is equipped with a sensitive 1/2.3" CMOS sensor. The maximum resolution for photography is 3840 x 3040 pixels. The same resolution is available for recording videos with a minimum frame rate of 3 fps. The maximum frame rate of 47 fps provides a resolution of 960 x 758 pixels, which allows recording videos in fast and slow motion with the highest detail.

The software is compatible with most operating systems (Windows, macOS, Linux) and is designed to control the camera, adjust settings, and process photographs and videos. The camera connects to a PC or laptop via a USB port.

System languages available for different operating systems:

  • Windows: Russian, English, German, French, Polish, Chinese, Turkish
  • Linux and macOS: English

More about Levenhuk microscopes compatibility with Levenhuk digital cameras.

The kit includes:

  • Digital camera for microscope
  • Adapter (23.2mm)
  • 2 adapters for microscopes with different tube diameters (23.2–30mm and 23.2–30.5mm)
  • USB cable
  • Installation CD with drivers and image processing software
  • User manual and warranty card
Specifications
Maximum resolution 3840x3040
Megapixels 12
Sensor 1/2.3" CMOS
Pixel size, μm 1.55x1.55
Exposure, ms 0.4–2000
Video recording +
Frame rate, fps for each resolution 3 at 3840 x 3040
11 at 1920 x 1516
47 at 960 x 758
Active range, dB 71.2
Installation location eyepiece tube with a diameter of 23.2 mm, installed in the eyepiece
Photo format *.jpg, *.bmp, *.png, *.tif
Video format recording: *.wmv, *.avi, *.h264 (Win 8 or later), *h265 (Win 10 or later)
Spectral range, nm 380–650 (built-in IR filter)
Shutter type ERS (Electronic Rolling Shutter)
White balance automatic/manual
Exposure control automatic/manual
Programmable options image size, brightness, exposure time
Output USB 2.0, 480 Mbps
System requirements Windows XP (32-bit), Vista/7/8/10/11 (32 and 64-bit), macOS 10.12, Linux Ubuntu 14.04, Intel Core 2 up to 2.8 GHz or later, minimum 2 GB RAM, USB 2.0 port, CD-ROM
Software Levenhuk, USB 2.0
Body metal
Power supply USB 2.0
Operating temperature range, °C −10... 50
