Levenhuk 500B Binocular Microscope

Levenhuk 500B Binocular Microscope

£340.00
£340.00
Sale Sold out
Taxes is not included. Shipping calculated at checkout.

🟢 In Stock

🚚 Estimated delivery: 3 days

Use the Levenhuk 500B binocular microscope in a laboratory to study stained samples of plant and animal tissue. Thanks to halogen light, the full range of colors will be transmitted as accurately as possible, and the contrast of details will impress even the most demanding researchers. This microscope is an excellent choice for a biochemist, microbiologist, or veterinarian.

The microscope features widefield eyepieces with 10x magnification and achromatic objectives with 4x, 10x, 40x, and 100x magnification. The binocular head is conveniently inclined at 30° and rotatable. The optics allow specimens to be examined at magnifications from 40x to 1000x using either the brightfield or oil immersion technique. Two of the objectives feature a spring-retracted mechanism to protect the front lens: these are the 40x and 100x objectives. The 100x objective is used for oil immersion.

The microscope is equipped with a stage fitted with a mechanical micrometer that helps accurately position the sample under the objective lens. Beneath the stage is a height-adjustable Abbe condenser with an iris diaphragm. A light filter can be installed in the special filter holder. The powerful halogen illumination is equipped with a collector lens. Brightness is adjustable. The illumination is powered by an AC power supply.

All the microscope's optical elements are made of glass. The body is made of metal.

Characteristics:

  • Binocular microscope with achromatic optics
  • Visual component with suitable tilt; the head can be rotated 360°
  • Wide field eyepieces, optical magnification range 40–1000x
  • Halogen lamp with collector lens and AC power supply

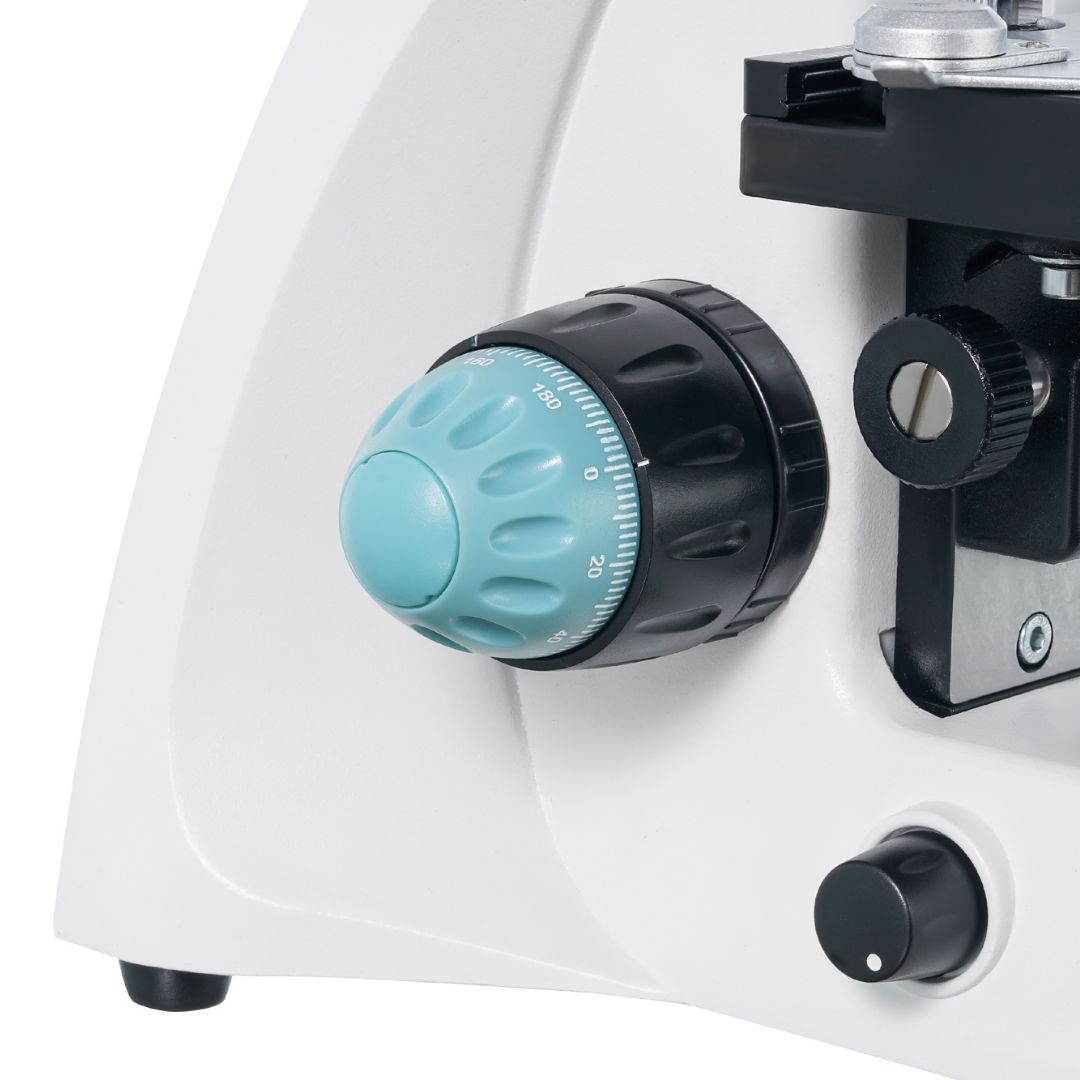

  • Adjusting lighting brightness, coarse and fine focusing
  • Slot for installing an analyzer (not included in the kit)

The kit includes:

  • Microscope
  • Achromatic objectives 4x, 10x, 40xs, 100xs (oil)
  • WF10x/18mm eyepieces (2 units)
  • Abbe condenser NA 1.25 with iris diaphragm and filter holder
  • Filters: blue, green, yellow
  • Fuse
  • Bottle of immersion oil
  • Power cable
  • Protective cover
  • User manual and lifetime warranty

Specs

Guy biological, light/optical
Microscope head type binocular
Optical material optical glass
Head 360° rotating
Head tilt angle 30°
Magnification, x 40 — 1000
Eyepiece tube diameter, mm 23.2
Eyepieces WF10x/18 mm (2 pieces)
Goals Achromatic: 4x, 10x, 40xs, 100xs (oil immersion)
Revolver for 4 objectives
Interpupillary distance, mm 48 — 75
Platina, mm 115x125
Stage travel range, mm 70/30
Platen mechanical, two-layer
Dioptric adjustment ±5
Condenser Abbe NA 1.25 with iris diaphragm and filter holder, adjustable height
Diaphragm iris
Approach coaxial, approximate (30 mm) and precise (0.002 mm)
Body metal
Lightning halogen
Adjusting the brightness ✓
Feeding 110–220 V
Type of lighting source 12 V/20 W halogen, with collector lens
Light filters blue, green, yellow
Possibility of connecting accessories slot for installing an analyzer (not included in the kit)
User level experienced users
Assembly and installation difficulty level easy
Application laboratory/medical
Lighting location lower
Research method bright field
Case/briefcase/bag included in the kit protective cover
