Levenhuk 700M Monocular Microscope

Levenhuk 700M Monocular Microscope: A metal biological microscope designed for studying transparent samples using transmitted light. This microscope can be used for study or as a hobby; it is useful in medical and clinical research and can be used for bacterioroscopy and cystoscopy. The Levenhuk 700M microscope will find its place in a home laboratory, educational facility, or hospital.

This microscope is equipped with a rotating turret with four objectives. The equipment includes achromatic objectives of varying magnifications, including one immersion objective. Using immersion oil can significantly increase the brightness of the observed samples, as well as the resolution limit. The two included eyepieces (a 10x widefield eyepiece and a Huygens eyepiece) complement each other perfectly and allow for a wide range of visual observations. The microscope offers total magnifications ranging from 40x to 2000x.

The monocular head is inclined at 45°, which is especially important for extended observations. This position reduces strain on the neck muscles and provides maximum comfort during observations. To make working in groups more comfortable, the microscope head rotates around its axis. You won't need to rotate the entire instrument to show samples to your colleagues or students.

The microscope stage moves vertically and horizontally, making it convenient for observing specimens, even at maximum magnification. The stage has a graduated scale that helps you determine the precision of the movement on both axes. Stage movement is controlled manually. Focusing is achieved using two types of adjustment: coarse focus and fine focus.

The adjustable illumination is located under the stage. To further illuminate the observed samples, an Abbe condenser with a diameter diaphragm is used to direct the light precisely onto the sample being analyzed. The condenser has special centering screws. The illumination system is powered by an electrical outlet, and the cable is included.

Characteristics:

• Magnification: 40–2000x
• Achromatic objectives
• Immersion oil
• Abbe condenser
• Two-axis stage
• Rotating head
• Coaxial coarse and fine focusing mechanism
• LED lighting
• Works with household electricity

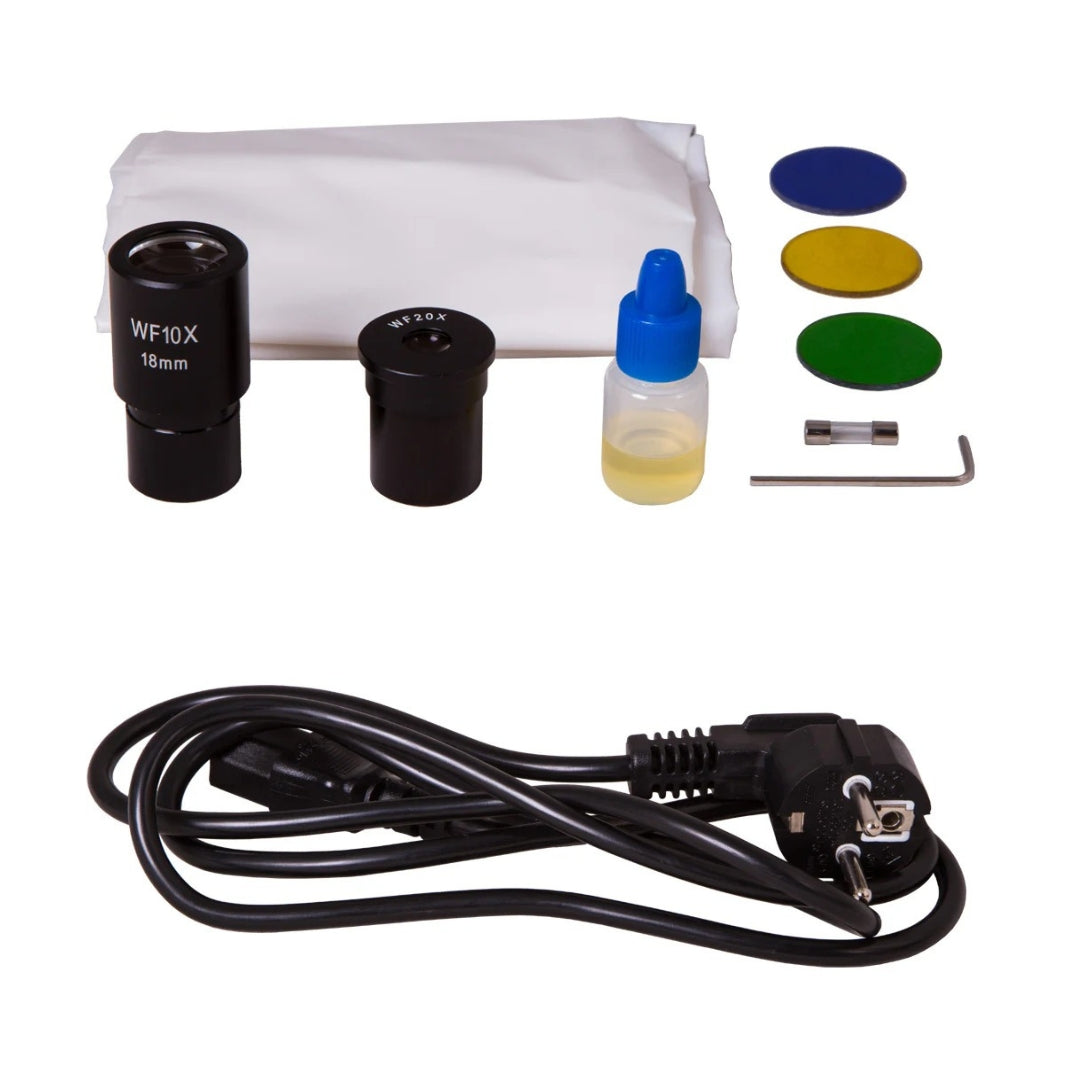

The kit includes:

• Microscope stand with base
• Monocular head
• Achromatic objectives: 4x, 10x, 40x and 100x (oil)
• Eyepieces: WF10x and H20x
• Filters (blue, green and yellow)
• Bottle of immersion oil
• Dust cover
• User Manual
• Lifetime Warranty

Caution: Check the specifications table for the correct voltage and never plug a 110V device into a 220V outlet or vice versa without using an adapter. Remember that the voltage in the United States and Canada is 110V, and in most European countries it's 220–240V.

Some of the things that can be seen under a microscope:

The Levenhuk 700M monocular microscope is compatible with Levenhuk C NG digital cameras (sold separately). Levenhuk C NG cameras mount onto the eyepiece tube instead of the eyepiece tube.
