Sky-Watcher

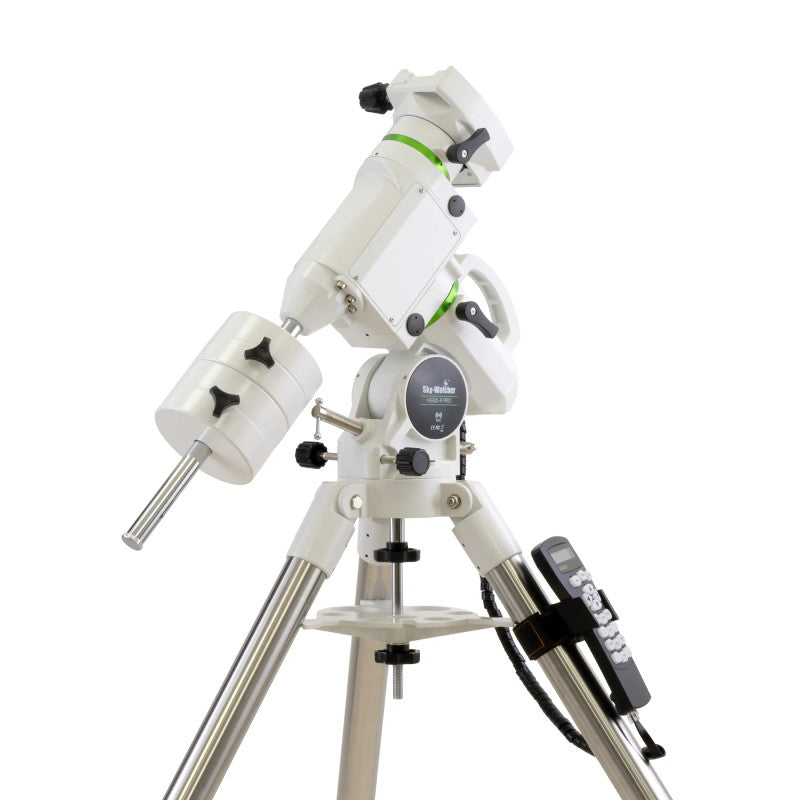

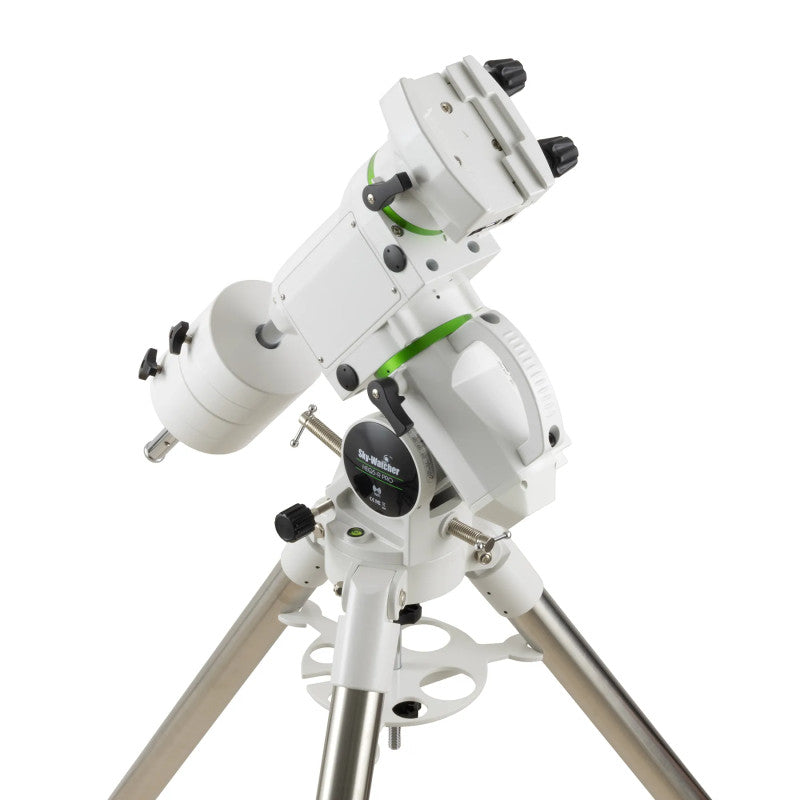

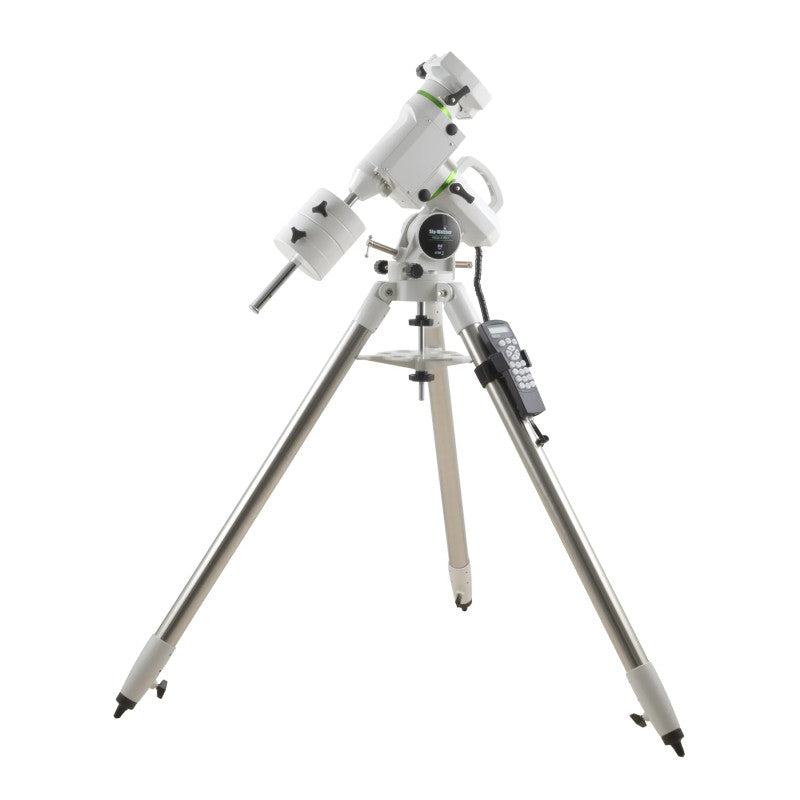

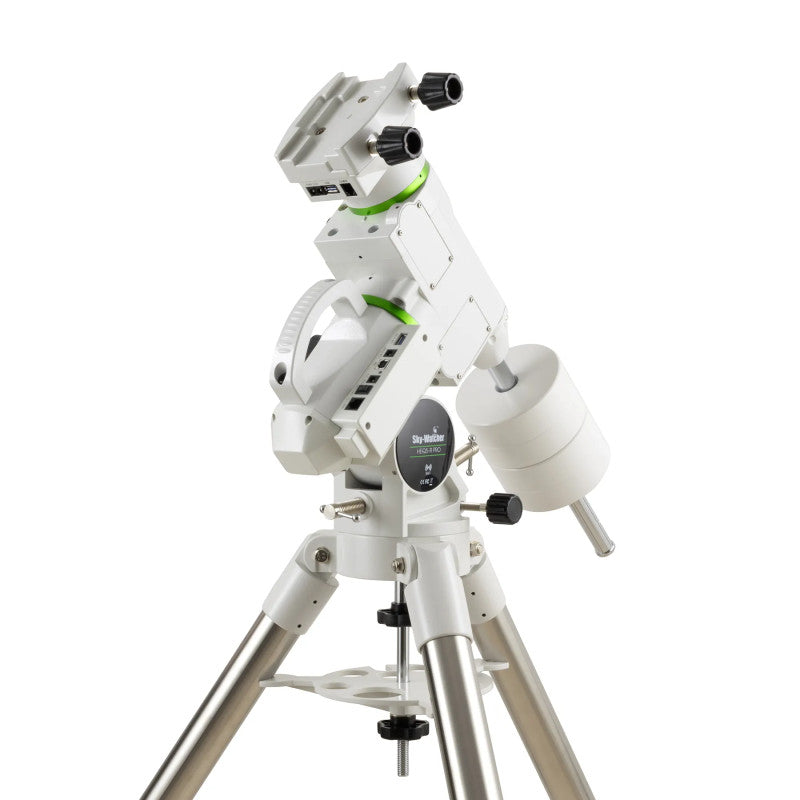

Sky-Watcher HEQ5-R Pro Go-To Equatorial Mount

Sky-Watcher HEQ5-R Pro Go-To Equatorial Mount

Regular price £1,320.00
Regular price Sale price £1,320.00
Sale Sold out
Taxes is not included. Shipping calculated at checkout.

In stock

🚚 Estimated delivery: 3 days

Quantity

New Version -R Pro

  • Motorized dual-axis GoTo German equatorial mount
  • Increased load capacity: now up to 15 kg.
  • Suitable for visual observation and ideal for beginner photographers.
  • For astrophotography: for Newtonian telescopes up to 150/200 mm in diameter.
  • Reduced periodic error thanks to belt drive.

A few years after perfecting its famous EQ6 mounts with the EQ6-R, Sky-Watcher (the world's leading telescope manufacturer) continues to work along the same lines with the HEQ5. The HEQ5-R thus incorporates the same innovations, making it even better for astrophotography .

The HEQ5-R, a lightweight version of the EQ6-R mount, is designed for enthusiasts and beginners looking for a portable and affordable GoTo mount . The tracking quality is superior to previous versions without automatic pointing. It allows for long-exposure astrophotography sessions even with the faintest objects. Additionally, it includes an autoguiding port as standard to significantly reduce periodic error in right ascension.

The HEQ5-R mount is a very attractive solution for telescopes up to 235 mm in diameter. It allows beginners to start astrophotography , using a computer and a second instrument in parallel when autoguiding is activated. Visual observers will appreciate the SynScan Go-To automatic pointing system, controlled by an intuitive hand controller . Indeed, there is no need to know the position of stars or distant deep-sky objects; the HEQ5 Pro automatically moves the instrument

Improvements to the drive system

The tracking system, an essential component of a motorized mount, has been modified with the incorporation of a belt drive . The result is significant: a smoother periodic error curve, less backlash, and reduced noise during movement (GOTO pointing). It now includes patented optical encoders to prevent any loss of positioning, even with manual movements. This provides the user with great freedom, eliminating the need to repeat the initialization procedure from scratch.

Stability and load capacity have been increased (from 12 to 15 kg)  by increasing the size of the gear in Right Ascension (RA) and adding more teeth to each axis.

Other new features:

  • Double female dovetail clamp: To support all instruments (Vixen or Losmandy format).
  • Power supply through the dovetail clamp (to prevent cables from tangling): HUB / Power / USB-C / ST4)
  • Carrying handle: Very practical and comfortable.
  • PPEC: Periodic Error Correction, now permanent
  • Increased latitude adjustment range: from 5° to 72°.

The SynScan Go-To automatic timing system

After polar alignment with the polar finder on Polaris, select mount alignment on one, two, or three stars. The database stores over 49,200 objects, including those from major catalogs (Messier, NGC, IC, as well as planets, Moon, and Sun). For maximum convenience, the mount moves quickly, up to 3.4°/sec, using the hand controller. Easy to use, it allows for quick pointing of the instrument to any galaxy, nebula, cluster, or solar system object. Discover in detail the famous Andromeda galaxy, the fabulous envelopes surrounding the heart of Orion, the Hercules cluster M13 and its core teeming with thousands of stars. Saturn, Jupiter, and the Moon are also wonders to explore without limits.

The hand controller screen, which shows the date, time, and observation location, together with the "Tour" function, allows the HEQ5-R Pro mount to point to the most interesting objects throughout the night . Enjoy a guided tour of the sky from your observation location by pressing the "Enter" button and selecting an object from the drop-down list. Pointing accuracy can reach up to 1 arc minute by compensating for the mount's mechanical errors . This procedure, called "Backlash," requires measuring the time between two opposite movements of the mount. The operation is simple and, especially in astrophotography, saves valuable time. The object you want to photograph is usually centered on the sensor... a real pleasure!

Specifications

Features Sky-Watcher HEQ5-R Pro GoTo Equatorial Mount
Mechanical
Type German Equatorial
Load Capacity 15 kg (12 kg recommended for astrophotography)
Female Dovetail Vixen and Losmandy type
Transmission Right Ascension/Declination Pinion: 160/144 teeth - Timing Belt 36:12
Reduction Ratio: 480 (Right Ascension) / 432 (Declination)
Material Sprocket (RA): Aluminum Alloy - Diameter: 74 mm
Worm Gear: Copper - Diameter: 15.5 mm
Latitude Adjustment From 5° to 72°
Azimuth Adjustment +/- 15°
Motor
Reference System SynScan Hand Controller with 42,900 objects from common celestial catalogs.
Tracking Modes: Sidereal, Lunar or Solar.
Functions: Parking, Synchronization, Error Correction, Identification, Tour, PPEC...
Pointing Accuracy 5 arc minutes
Training Hybrid Stepper Motors with 64 microsteps/1.8° - Maximum Rotation Speed: 3.2°/sec
Resolution RA: 6,144,000 revolutions/minute (0.21 arc seconds)
DEC: 5,529,600 revolutions/minute (0.23 arc seconds)
Guiding Speeds 0.25x, 0.5x, 0.75x, 1x Sidereal Speed
Electronic
Power Consumption 12 V DC (9 to 12.6 V) - 3 A
Power Cigarette Lighter Cable included.
Ports 1 USB-B port / 1 USB-A port / 1 ST4 port (autoguiding port)
SNAP port for camera control
Physical
Weight Mount: 12 kg - Tripod: 5.2 kg
Counterweight 2 x 5 kg counterweights included.
Counterweight Bar Diameter 20 mm - Length 310 mm
Tripod Tubular steel tripod (44.5 mm section) - Adjustable height (from 97 cm to 121 cm)
Polar Scope Optional
Operating Temperature -10° to +50°C
