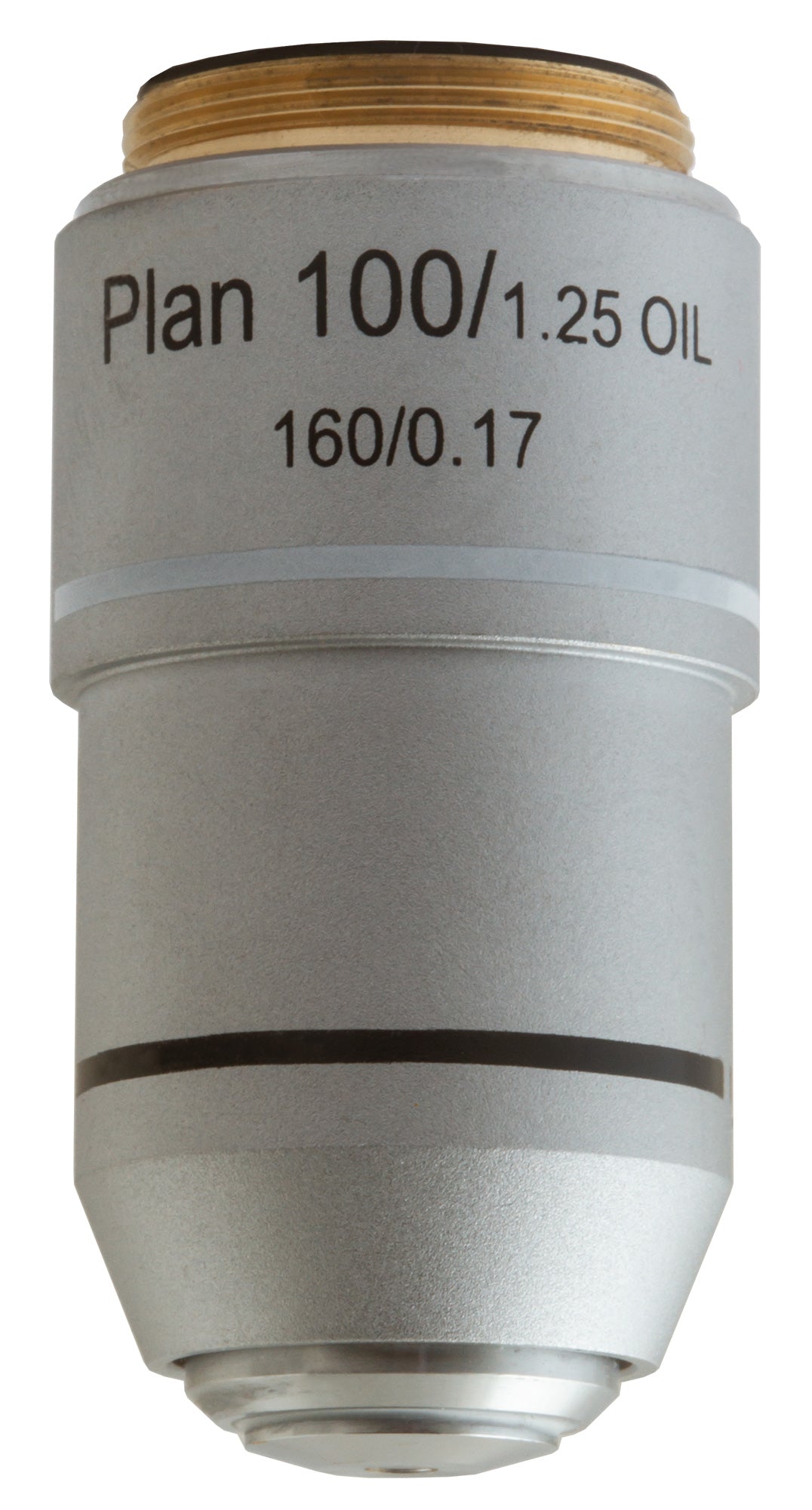

Levenhuk MED 100x Achromatic Plan Objective

Levenhuk MED 100x Plan Achromatic Objective
Retractable body. For oil immersion. Magnification: 100x. Aperture: 1.25

The Levenhuk MED 100x objective is a plan achromatic objective with 100x magnification. It can be installed on microscopes of any brand. You can use this objective for classic "dry" observations. In addition, it allows for oil immersion observations. The front lens is equipped with a spring-loaded retractable mechanism to protect the optics from accidental damage.

This plan achromatic objective is especially effective for the study of complex microstructures. It transmits a sharp, high-quality image, free of spherical and chromatic aberrations. This objective perfectly corrects field curvature.

The Levenhuk MED 100x plan achromatic objective features glass optics and a metal body.

The kit includes:
Objective
Plastic case

Specifications:
Lens material: optical glass
Body material: copper
Optical design: plan achromatic
Magnification, x: 100
Aperture: 1.25
Working distance, mm: 0.234
Parfocal distance, mm: 45
Coverslip thickness, mm: 0.17
Compatible tube length, mm: 160
Thread type: WJ 4/5"*1/36"
Retractable body: yes
Oil immersion: yes
