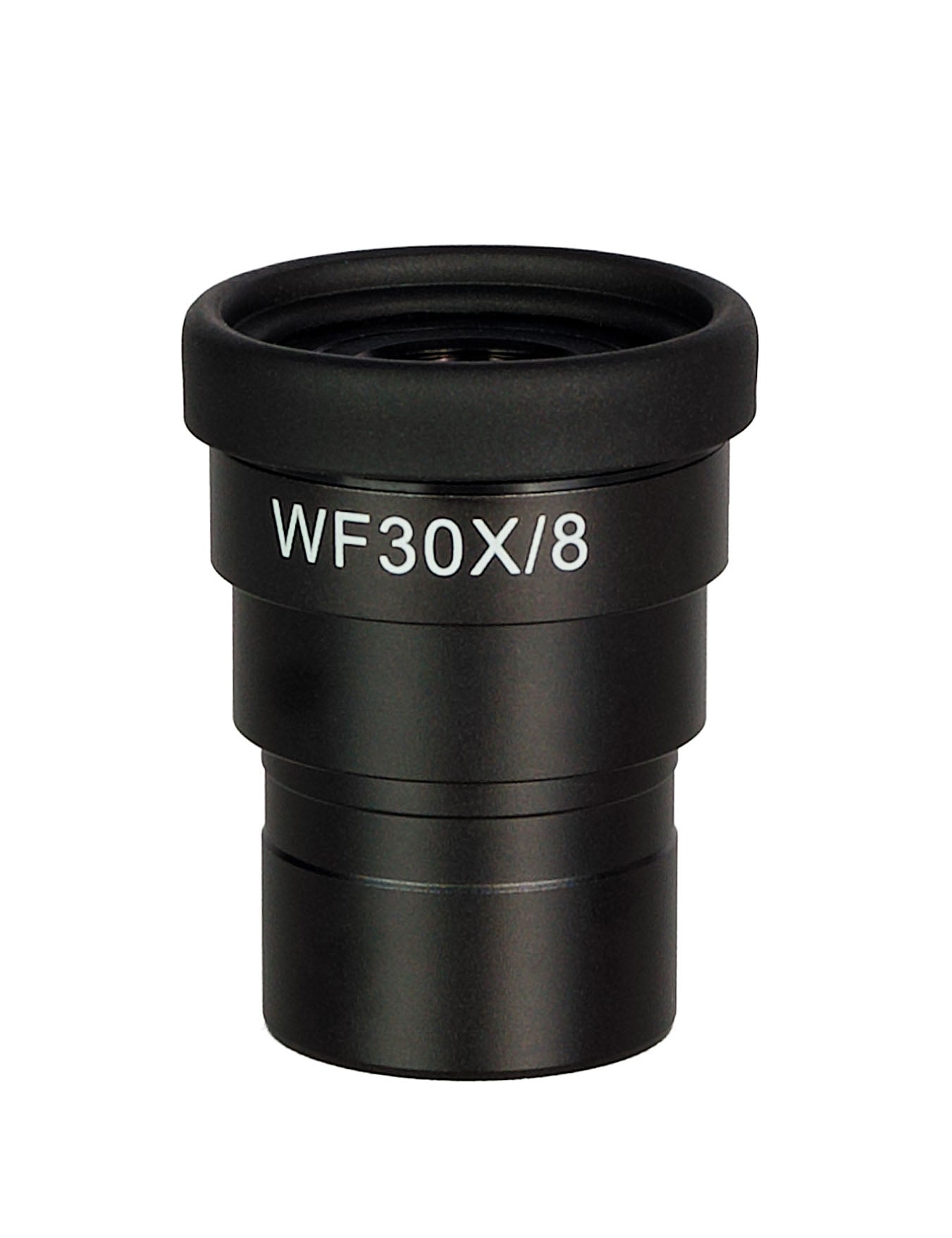

Ocular MAGUS AD30 30x/8 mm (D 30 mm)

MAGUS AD30 30x/8 mm eyepiece (D 30 mm)
With diopter adjustment. Magnification: 30x. Field of view: 8 mm

Additional eyepieces can be used to expand the microscope's magnification range.

This eyepiece with diopter adjustment is the best choice for microscopes that do not have a diopter adjustment ring on the eyepiece tube. If the user's vision is imperfect, this eyepiece facilitates sharp focusing of the specimen. If there is already diopter adjustment on the eyepiece tube, it does not prevent the use of this eyepiece, and adjustment can be made on either the eyepiece or the eyepiece tube.
Eyepiece diameter: 30 mm.

Compatibility:
MAGUS Stereo A6 stereomicroscope
MAGUS Stereo A8 stereomicroscope
MAGUS Stereo A10 stereomicroscope

Specifications
Optics material: optical glass
Magnification, x: 30
Field of view, mm: 8
Diopter adjustment: ±5D
Eyepiece barrel diameter, mm: 30
Eye relief, mm: 20
