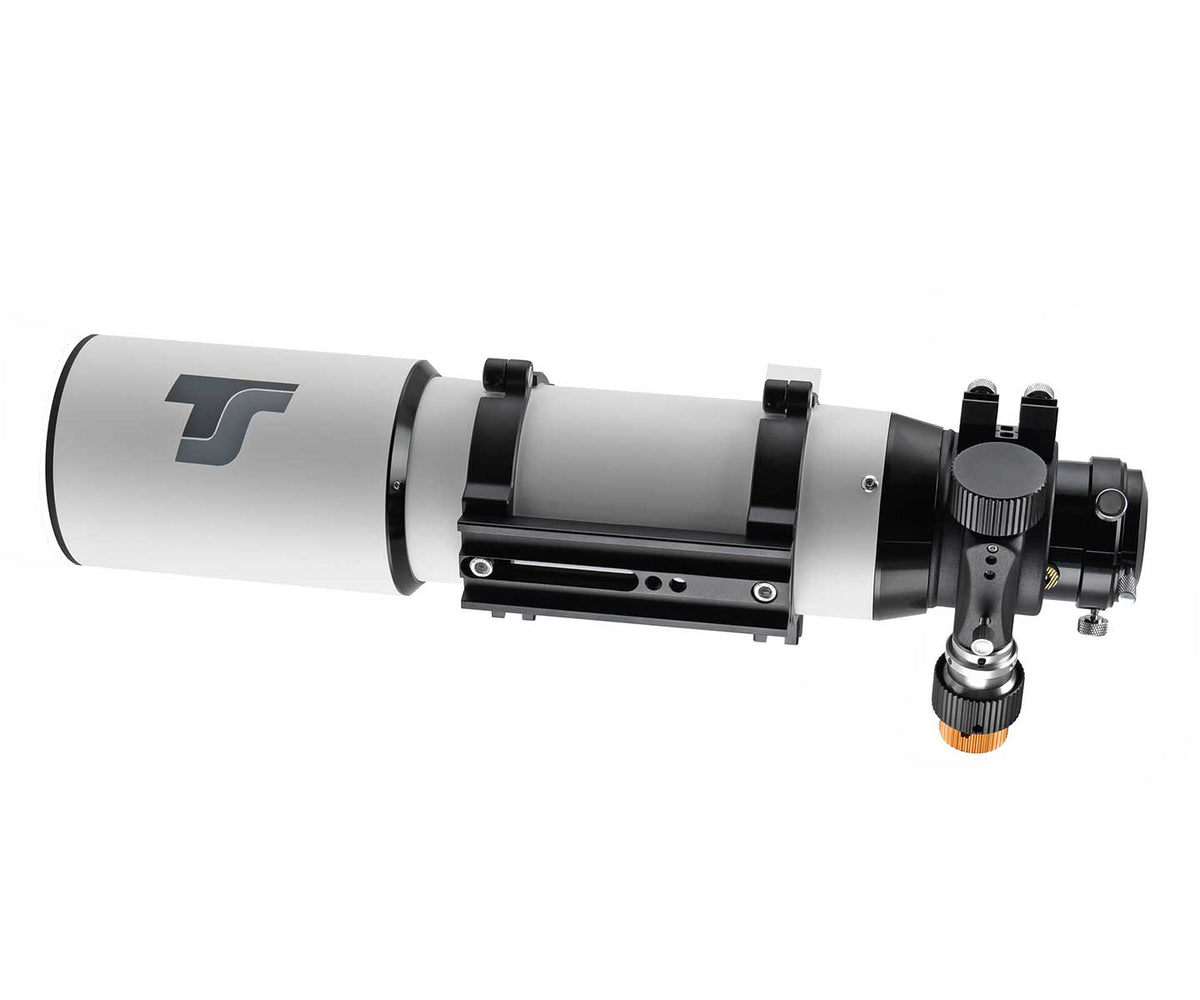

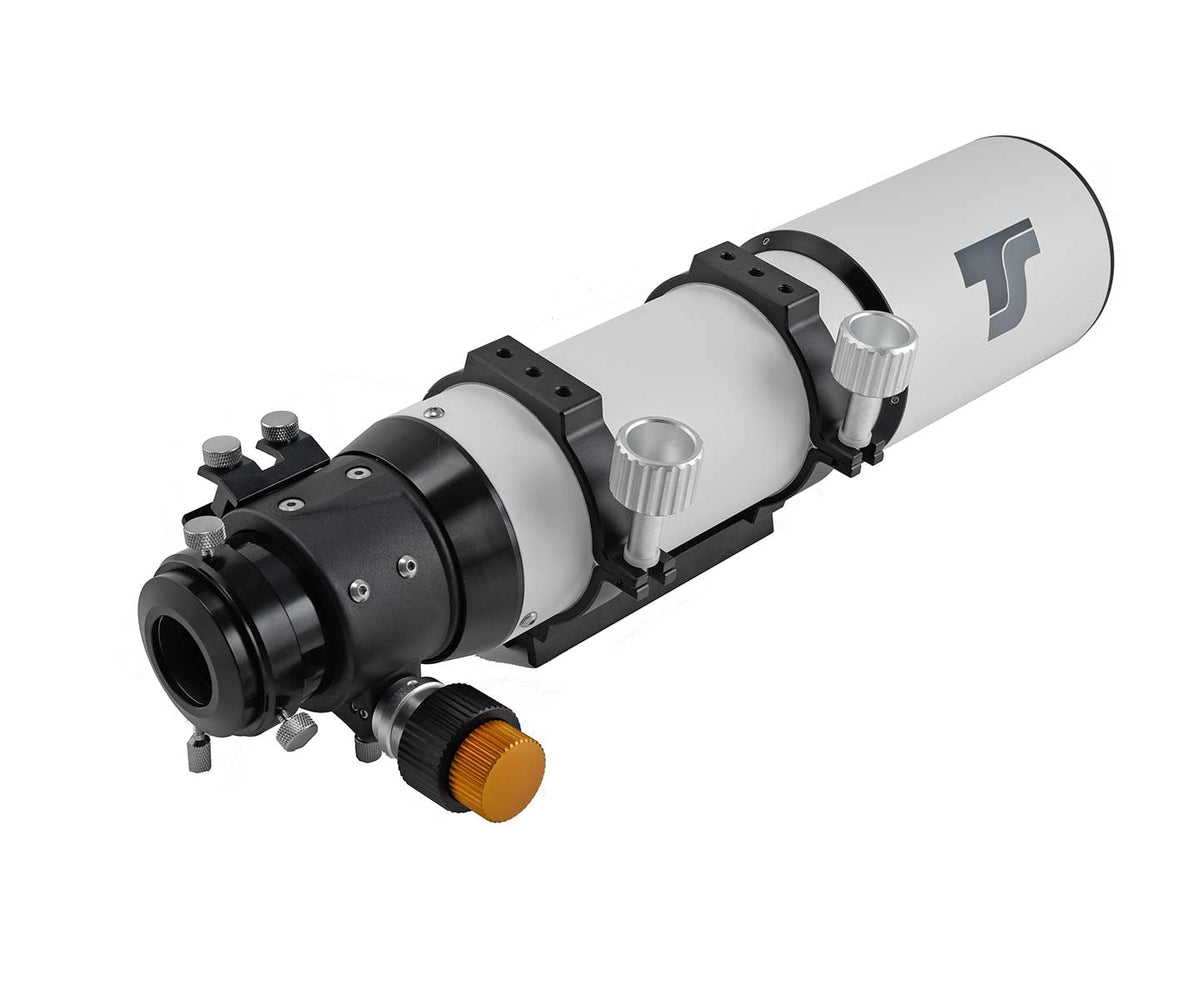

AP 80/560 ED OTA Apochromatic Refractor Telescope

TS Premium 80mm f7 ED apo refractor telescope with improved image quality thanks to ED lens and 2" rack and pinion focuser for astrophotography and observing

• Premium 80mm f/7.0 ED 2-Element Lens with Enhanced Chroma Correction and Good Light Sensitivity - Ohara Glass (Japan)
• Focal length 560 mm - Focal ratio f/7
• Excellent mechanical construction with CNC tube, CNC tube rings and adjustable temperature compensated lens mount
• 2" Dual Speed ​​Rack and Pinion Focuser – One of the best focusers in the TS product range for high loads
• 2" and 1.25" connection and M54x0.75 internal thread available for adaptations
• Good image field correctors and also reducers for astrophotography are optionally available
• Dovetail: GP/EQ5 style included
• Finder shoe included for finder scopes and small guide telescopes

TS-Optics 80 mm F/7 ED APO refractor for astrophotography and observation

The compact 80mm F/7 Ultra-Low Dispersion ED Refractor from Teleskop-Service is a robust and highly transportable "all-around telescope" for observation and astrophotography. The well-corrected optics provide an almost aberration-free image, due to the moderate f-ratio and integrated ED glass. Use this APO refractor for astrophotography or for impressive observations. The good optics, the "photo-friendly" 2" focuser and the solid construction guarantee joy and success, as well as fantastic experiences under the night sky.

The advantages of the TS 80 mm f7 ED refractor:

• Very well corrected ED optics - adjustable

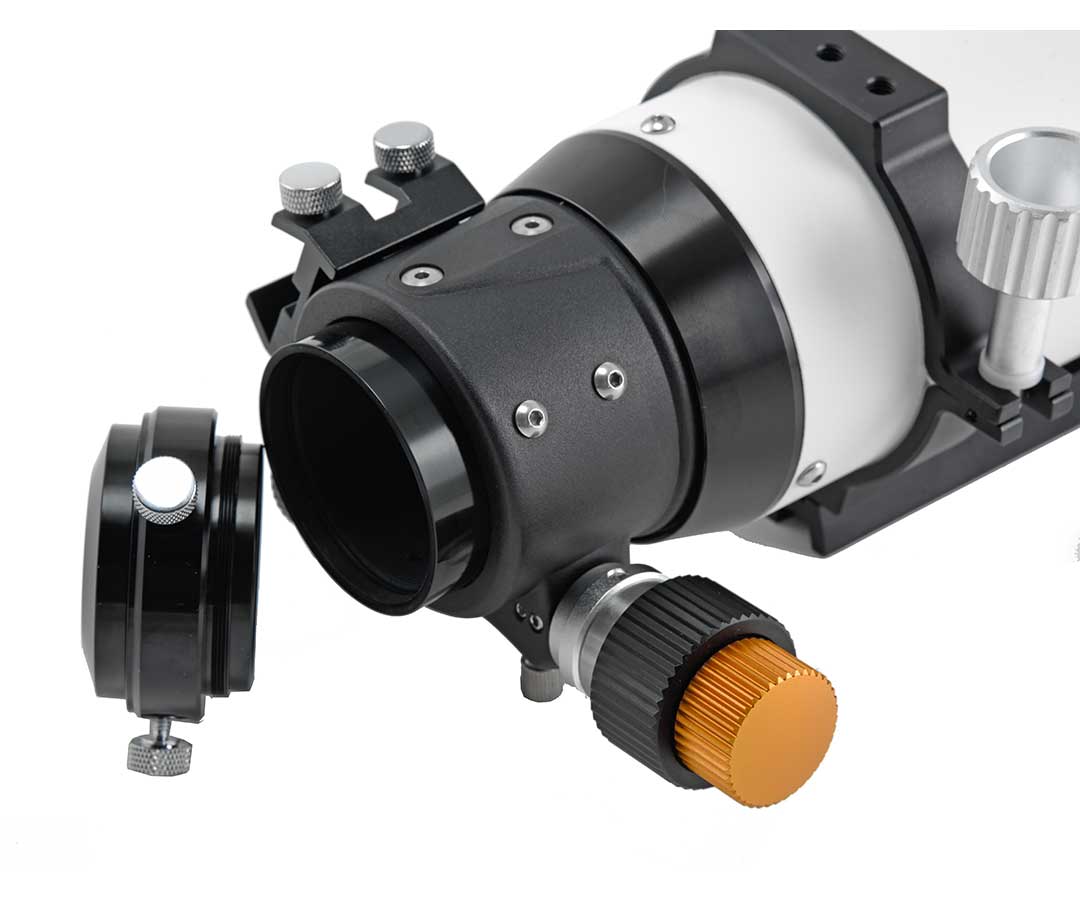

• 2" rigid and precise focuser - ball bearing mounted draw tube - focus adjustment via R&P mechanism
• 2" receptacle with reduction to 1.25" with ring clamp and additional M54x0.75 photo thread for screw connection
• Robust tube construction with CNC tube rings ensuring optimal mechanical stability

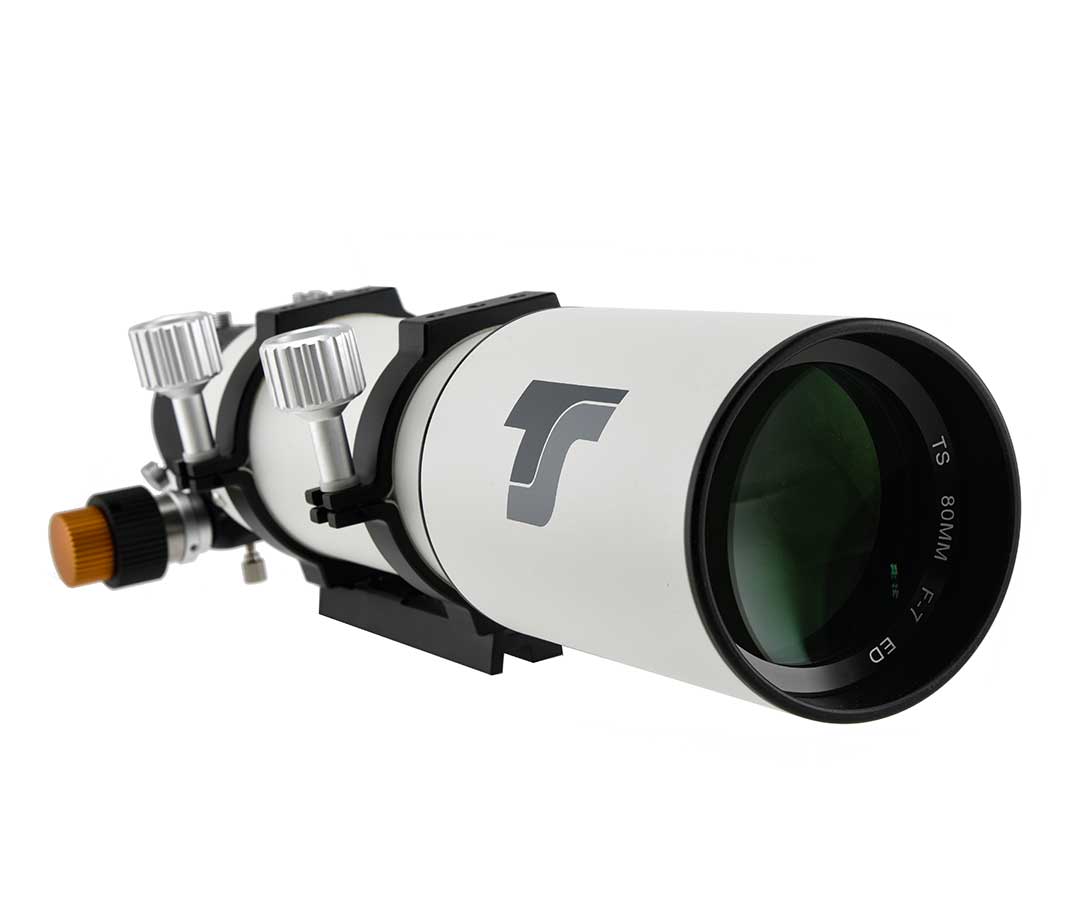

The Doublet ED lens:

The hand-made lens is mounted in a temperature compensated cell. It consists of two lenses, one of them being an ED element for good correction of chromatic aberration. We use the best possible multi-coating from the manufacturer on each glass air surface for optimal contrast.

The TS 80mm f/7 ED refractor is ideal for astrophotography:

The precise focuser and light-sensitive optics make the 80mm ED refractor a good telescope for astrophotography. To correct the image field, we recommend the following correctors, they are also linked in the accessories section.

TSRED80 - focal length reduction and image field correction
This corrector is designed for the 80mm f/7 ED and shortens the focal length to 448mm. Speed ​​increases to f/5.6. With a 55mm backfocus from the T2 thread, you can connect all common DSLR cameras and also CCD cameras. We recommend the TSRED80 for DSLR cameras with APS-C sensors and for CCD cameras with sensors up to 30mm in diameter.

WiflatM48 - 2" field correction without focal length change... Exceptional illumination, suitable for larger sensors, a field of approximately 40 mm diameter is illuminated at 100%. The back focus of the M48 corrector is 55 mm .

Specifications

We supply:

• 80mm f/7 ED Refractor
• Reduction from 2" to 1.25"
• Dust protection caps
• CNC tube rings
• GP style dovetail
