ASI 2600 MM-Air Mono Camera

ASI 2600 MM-Air Mono Camera

Regular price €2.849,00
Regular price Sale price €2.849,00
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

🚚 Estimated delivery: 5 days

Quantity

The ASI 2600 Air combines an imaging sensor and a guiding sensor in one compact housing. The main sensor is the Sony IMX571 with a native 16-bit ADC, a dynamic range of 14 f-stops, and 3.76-micron square pixels. The read noise is only 1.0e, and the full well capacity reaches an incredible 80ke. And all this without amp glow. The main feature is the ASI Air astrophotography computer, now integrated, which until now was only available separately. This means you get a cooled DeepSky camera with guiding and an astronomical computer (shutter) in one device!

The guiding sensor is the SC2210 with excellent NIR sensitivity, equivalent to the sensor in the ZWO ASI 220MM mini-camera. The sensor size is 7.68 mm x 4.32 mm. It has 4x4 micron pixels with a resolution of 1920×1080 pixels and a full well capacity of 8780e. Stars in the corners of guide images, which are affected by the focal length, may not be completely round. This is not due to sensor tilt and does not affect normal use.

Thanks to its compact design, the ASI2600MC Air only needs one USB cable for control. This avoids potential cabling problems and simplifies setup. You don't need a separate OAG or guide camera.

Other features:

  • STARVIS Technology: The ASI2600MC Air is based on Sony's STARVIS technology. Sony's back-illuminated CMOS image sensor improves sensitivity and noise reduction, key factors for improving image quality.
  • Native 16-bit ADC: This 16-bit ADC is not a 16-bit CCD ADC. It can achieve a dynamic range of 14 f-stops, which significantly improves image sharpness and contrast, and also allows for smoother and more natural color transitions.
  • FPS: The maximum frame rate in RAW8 mode at full resolution is 15 fps, which is even faster than the normal ASI 2600MC Pro.
  • USB 3.0 and 512MB DDR3 buffer: With the combination of USB 3.0 and a 512MB DDR3 buffer, the ASI2600MC Air offers stable and secure data transmission that can effectively prevent image loss.
  • No amplifier glow: Conventional CMOS sensors generate a weak infrared light source during operation, which is often seen in the corners of uncalibrated images. This is the telltale sign of amplifier glow. Since the ASI2600MC Air uses a zero-glow circuit, you don't have to worry about amplifier glow, even when shooting with high amplification and long exposure times.
  • QE (Quantum Efficiency): According to ZWO test results, the maximum QE value of the ASI2600MC Air is over 91%.
  • Two-stage TEC cooling: Thanks to two-stage TEC cooling, the ASI2600MC Air can reduce the CMOS sensor temperature to more than 35 degrees Celsius below ambient temperature, which can significantly reduce dark current generation and sensor noise, even with long exposure times. The Delta T 35 ℃ is tested at an ambient temperature of 30 ℃. It may decrease if the cooling system runs for a long period of time. If the ambient temperature drops, so does the Delta T.
  • Dark current noise: The dark current noise of the ASI2600MC Air is extremely low. Even with moderate cooling, you get a very low noise image.
  • Anti-dew heater: The ASI2600Air camera features a polyimide heater. This can help prevent potential condensation or icing problems, depending on the environment in which the images are taken. The heater power is approximately 5 W. You can turn it off at any time if you want to save energy.

Please note that an external power supply is required.

This camera needs 1 amp even when not cooled, which is a problem for computer USB ports, as they are only designed for 900 mA, i.e. 0.9 A. Therefore, stable operation of the camera is only possible with an external 12 V power supply (12 V, 3 A, 5.5 / 2.1 mm).

Dual-band WLAN: The external dual-band antenna, compatible with 2.4 GHz and 5 GHz frequencies, allows for stable and smooth camera use within a 20-meter radius. With the ASIAir app from ZWO, you can control the camera and view images easily via your smartphone.

Telescope requirements: ZWO Air cameras are compatible with telescopes that support APS-C or larger image formats. If a telescope with an APS-C image circle is used, slight distortions may occur in the guide star. For more precise and stable tracking (autoguidance), we recommend using a telescope with full format or a larger image circle.

Advantages:

  • Integrated SC2210 guide sensor
  • Sony IMX571 APS-C color sensor - back-illuminated
  • High resolution thanks to 3.76 µm pixels
  • Integrated anti-dew heating
  • Integrated ASI Air

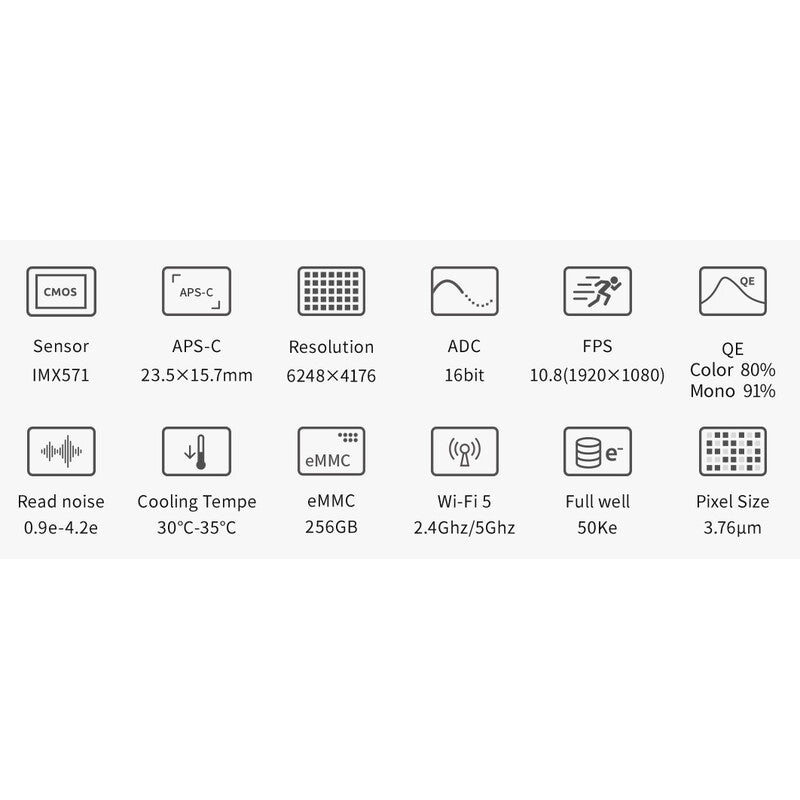

Specifications:

Feature Specification
Capacity
Sensor type CMOS sensor (Sony IMX571)
Chip size 23.5 × 15.7 mm
Chip diagonal 28.3 mm
Megapixels 26 MP
Pixel size 3.76 µm
Photo resolution 6248 × 4176
Digital sampling 16 bit
Cooling Yes
Maximum cooling difference 35 °C relative to ambient temperature
Read noise 0.9 e⁻
Full Well Capacity 50,000 e⁻
Frames per second 15 fps
Interfaces USB 3.0
Connection (telescope side) M54
Flange focal distance 17.5 mm
Color camera No (monochrome)
Infrared filters Yes
Wi-Fi Yes
Memory buffer 256 GB
Internal memory eMMC
Power supply 12 V
Equipment included Shutter
Filter wheel compatibility No
Weight 775 g
Diameter 90 mm
Length 98 mm
Series ASI 2600
Applications All-Sky, Meteors
Autoguiding Yes
Moon and planets No
Nebulae and galaxies Yes
