ZWO
ASI 992 MM Pro SWIR Mono Camera
ASI 992 MM Pro SWIR Mono Camera
🟠 Supplier stock
✅ Orders accepted
🚚 Estimated delivery time: 30 days
Couldn't load pickup availability
The ZWO ASI992MM Pro sets new standards in the SWIR field: it combines a specialized InGaAs sensor with high sensitivity in the range up to approximately 1.7 µm, powerful two-stage cooling, low read noise, and robust data storage.
If you want to obtain images in the shortwave infrared, whether in astronomy or in the industrial or scientific field, here you will find a powerful tool.
The camera allows you to photograph stars through layers of clouds and even during the day.
Refrigeration requires a external power supply 12 volts. Powering the camera via USB is insufficient. We recommend a 12V, 3-5A power supply with a 5.5 x 2.1 mm plug, internal positive terminal, or an 11-14 volt lithium-ion battery. A power supply outside this voltage range may cause irreparable damage to the camera.
Specs
| Feature | Detail |
|---|---|
| Sensor type | CMOS sensor (Sony IMX992) |
| Chip size | 8.9 × 7.1 mm |
| Chip diagonal | 6.35 mm |
| Photographic resolution | 2592 × 2056 |
| Megapixels | 5.3 MP |
| Pixel size | 3.45 µm |
| Digital sampling | 12 bit |
| Images per second | 70 fps |
| Color camera | No |

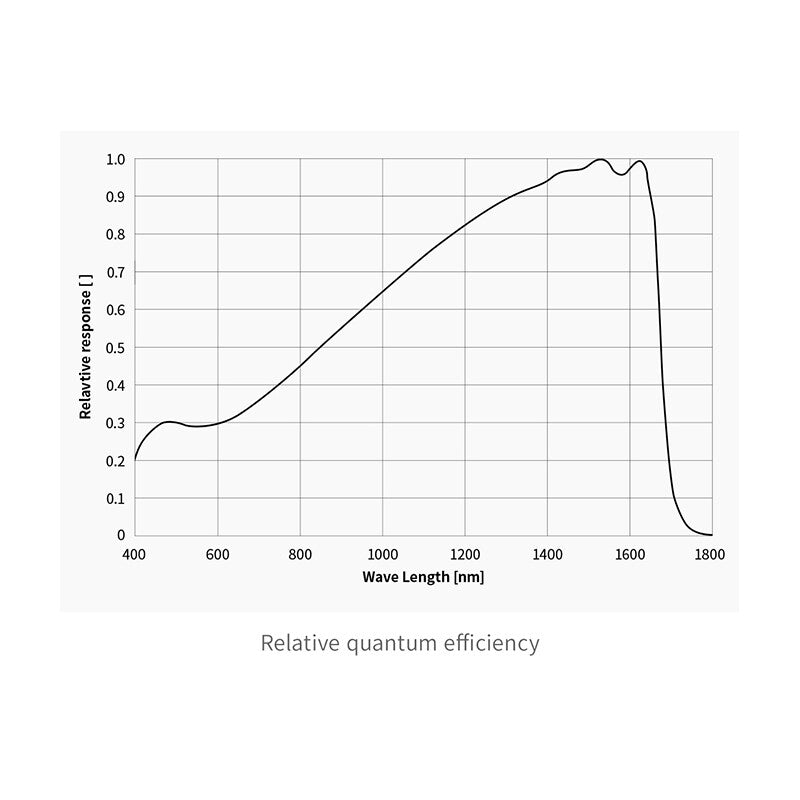

| Quantum efficiency | 80% |
| Reading noise | 7.1 e⁻ |
| Full Well Capacity | 62,800 e- |
| Cooling | Yeah |
| Maximum cooling difference | 40 °C relative to ambient |
| Binning | Yeah |
| Interfaces | USB 3.0 |
| Telescope connection | M42 × 0.75 |
| Power supply | 12 V |
| Memory buffer | 256 GB |
| Internal memory | DDR3 |
| Wireless connectivity | Wi-Fi |
| Filter wheel included | No |
| Series | ASI SWIR |
| Body diameter | 78 mm |
| Recommended applications | AllSky, meteors |
| Lunar and planetary observation | Yeah |
| Nebulae and galaxies | Yeah |
| Self-guided | No |
