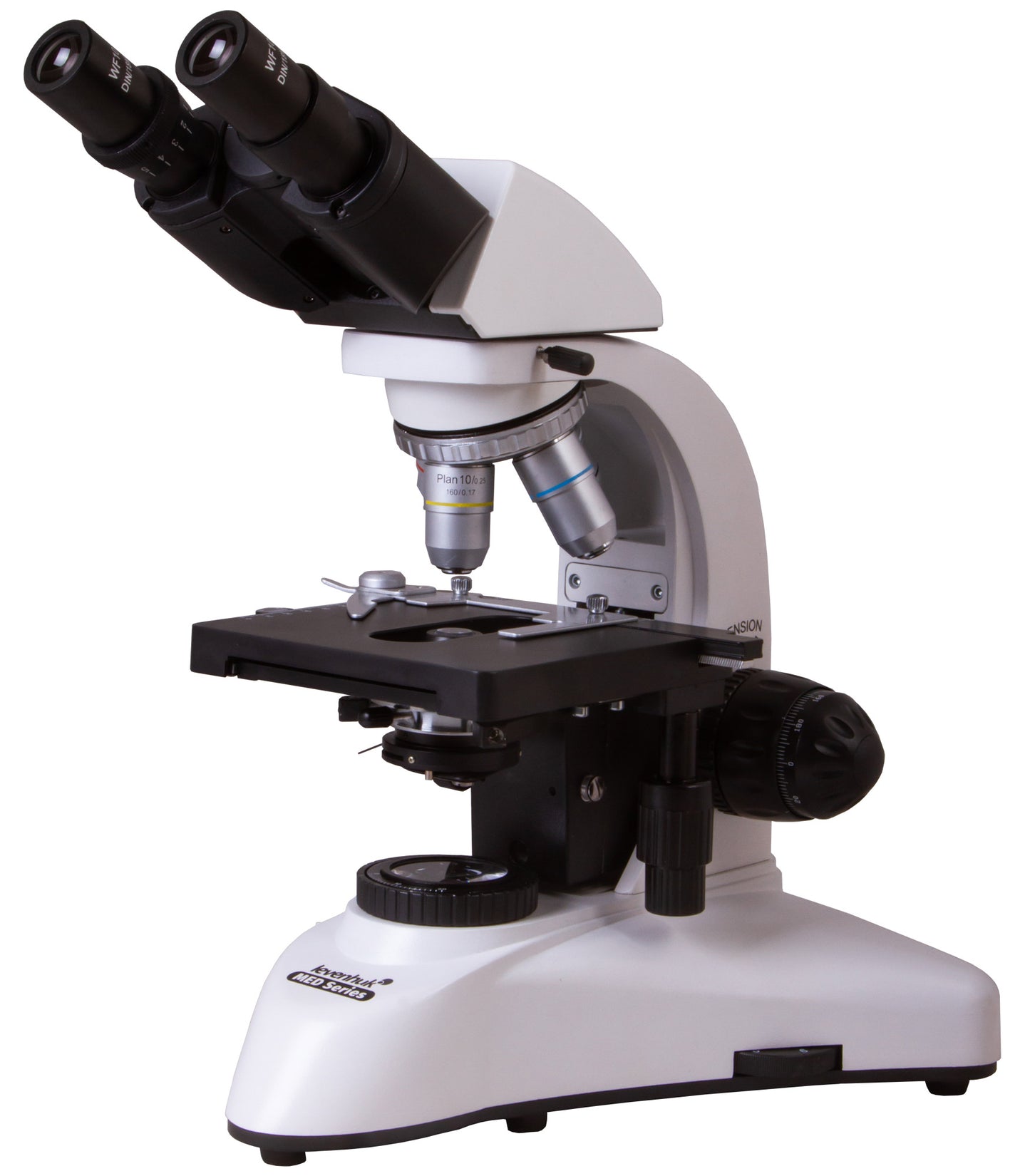

Levenhuk MED 25B Binocular Microscope

Levenhuk MED 25B microscope is a binocular model with two condensers: one for bright field and one for dark field. Both condensers can be used for observations with oil immersion. This microscope is designed for professional work in medicine, microbiology, biochemistry, and other scientific fields. It can be used for research, diagnostic, or educational purposes. This microscope allows for observations with magnification up to 1000x, Köhler illumination setup, and studying complex detailed microstructures.

The binocular head is 360° rotatable. The vertical part is inclined at 30°, which enables comfortable long-term observations. The kit includes wide field eyepieces with 10x magnification. They have diopter adjustment to adapt the optics to individual vision. The revolving nosepiece contains four plan achromatic objectives, which provide aberration-free images. The 100x objective allows for oil immersion observations. Two of the objectives use protective retractable casings. The optics of all accessories have an anti-fungal coating.

Samples are placed on a stage with the help of a mechanical micrometer. The stage is double-layered and can be moved along two axes. Sharpness is adjusted by rotating the coarse and fine focus adjustment knobs. The mechanisms have a small step factor and extra-smooth sharpness adjustment. Samples are illuminated from below with a 20-watt halogen bulb. Its brightness is adjustable. The light passes through an Abbe condenser equipped with an iris diaphragm, where filters can be installed (the kit includes three filters). Additionally, a dark field condenser can be installed on the microscope. It is also included in the kit and allows for the use of oil immersion.

The illumination is powered by an AC power supply.

Features:
Binocular head
Plan achromatic optics provide 40x to 1000x magnification
Anti-fungal coating on all optical surfaces
20-watt halogen lamp powered by an AC power supply
Possibility of using Köhler illumination
Possibility of bright field and dark field observations

The kit includes:
Microscope base and stand
360° rotatable binocular head
Plan achromatic objectives: 4x, 10x, 40xs, 100xs (oil immersion) with anti-fungal coating
Wide field eyepieces: WF10x / 18 mm with anti-fungal coating (2 pcs)
Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
Dark field condenser (oil immersion)
Filters: blue, green, yellow
Immersion oil bottle
Fuse (2 pcs)
Microscope power cable
Protective cover
User manual and lifetime warranty

Caution:
Refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into a 220V outlet or vice versa without using a converter. Remember that mains voltage is 110V in the US and Canada, and 220–240V in most European countries.

The Levenhuk MED 25B binocular microscope is compatible with Levenhuk cameras (purchased separately). Levenhuk cameras are installed in the eyepiece tube, in place of an eyepiece.

Specifications:
Type: biological, light/optical
Head: binocular
Optics material: optical glass with anti-fungal coating
Nozzle: 360° rotatable
Head inclination angle: 30°
Magnification, x: 40 — 1000
Eyepiece tube diameter, mm: 23.2
Eyepieces: WF10x/18 mm, wide field with diopter adjustment (2 pcs)
Objectives: plan achromatic: 4x, 10x, 40xs, 100xs (oil immersion)
Revolver: for 4 objectives
Interpupillary distance, mm: 55 — 75
Stage, mm: 140x140
Stage travel range, mm: 75/50
Stage: mechanical, two-layer
Diopter adjustment: ±5
Condenser: Abbe N.A. 1.25 with iris diaphragm and filter holder
Diaphragm: iris
Focus: coaxial, coarse (0.5 mm) and fine (0.002 mm), rack and pinion system
Body: metal
Illumination: halogen
Brightness adjustment: ✓
Power supply: 100–240V
Illumination source type: 6V/20W, 85–230V AC
Light filters: blue, green, yellow
Additional: collector lens, Köhler illumination, dark field condenser (oil immersion)
User level: experienced users, professionals
Assembly and installation difficulty level: complicated
Application: laboratory/medical
Illumination location: lower
Research method: bright field, dark field
Cover/case/bag included in the kit: protective cover
