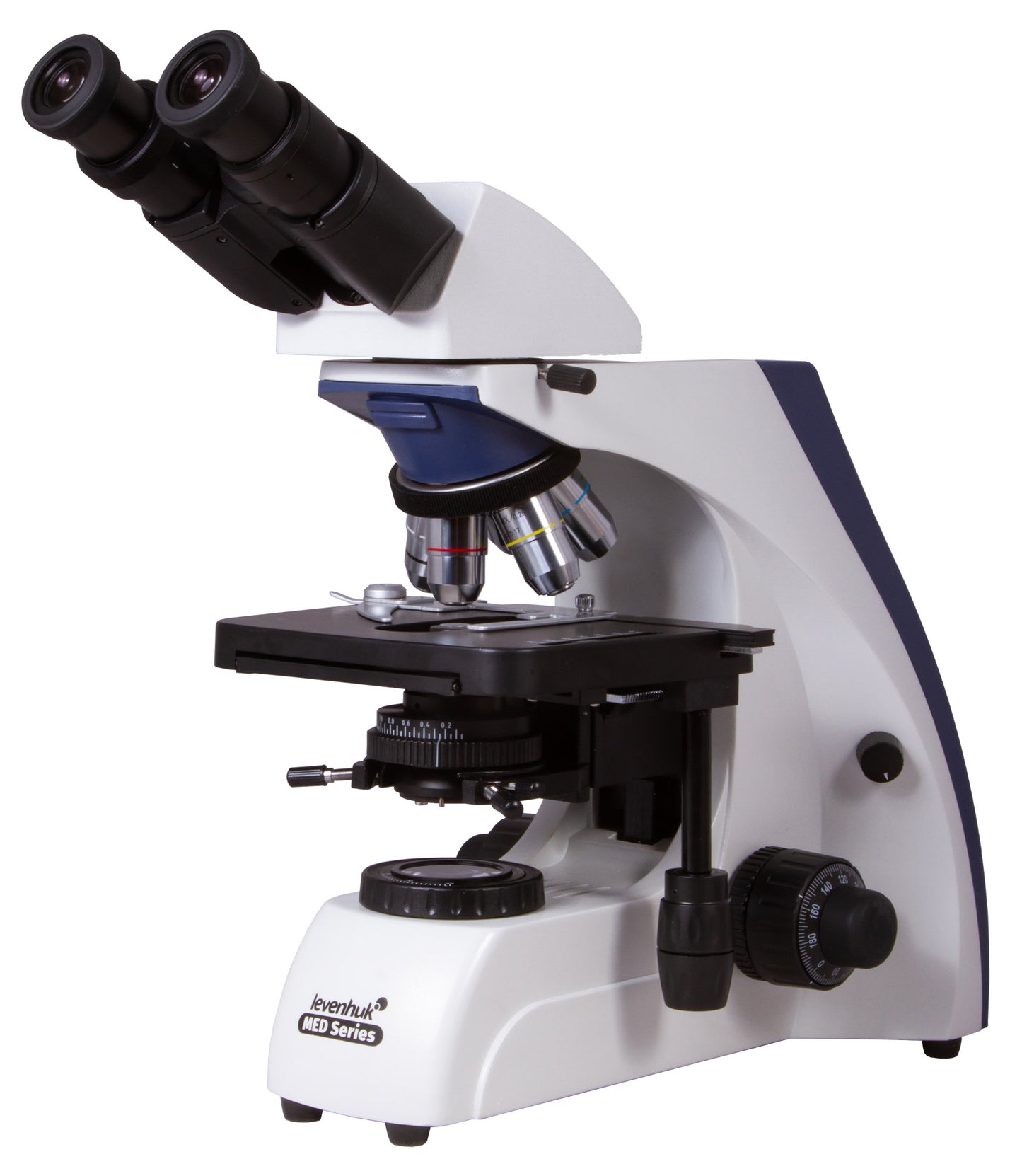

Levenhuk MED 30B Binocular Microscope

Levenhuk MED 30B Binocular Microscope
Magnification: 40–1000x. Binocular head, infinity-corrected semi-plan achromatic objectives, Abbe condenser with iris diaphragm

The Levenhuk MED 30B Binocular Microscope features professional optics and allows for the expansion of its basic capabilities by using additional accessories (sold separately). The microscope is suitable for laboratory research using the brightfield method with magnifications from 40x to 1000x. It can be used for the study of small and complex structures. It is excellent for use in educational, scientific, clinical, and diagnostic fields and can meet demanding user needs.

Infinity-corrected semi-plan achromatic optics
Levenhuk MED 30 series microscopes are equipped with an infinity-corrected optical system, which is characteristic of professional and high-quality microscopes. This system includes infinity-corrected semi-plan objectives and delivers clear, high-contrast images with a high degree of flatness. One of the most important features of an infinity-corrected optical system is that it allows for additional components to be installed in the optical path between the objective lens and the eyepiece tube. These additional components include polarizers (all Levenhuk MED 30 microscopes feature a special slot for their installation) and epi-fluorescence illumination. In summary, their modular design and ease of use make Levenhuk MED 30 microscopes ideal optical instruments for use in various types of microscopy and work in hematology, histology, and microbiology laboratories, among others.

Optical features
The microscope has a binocular head that can rotate 360°. The viewing part has a 30° inclination angle, allowing for prolonged observations without neck muscle fatigue, which helps focus on the research.

The kit includes two 10x wide-field eyepieces with diopter adjustment and five semi-plan achromatic objectives of various magnifications. Three of the objectives have retractable casings. The 100x objective is suitable for oil immersion observations. The optics of all accessories are protected with an anti-fungal coating.

Features:
Binocular head, magnification range from 40x to 1000x
Infinity-corrected semi-plan achromatic optics
Eyepieces and objectives with anti-fungal coating
LED lamp with brightness adjustment
Ability to use Köhler illumination
Powered by an AC power supply

The kit includes:
Microscope base and stand
360° rotatable binocular head
Infinity-corrected semi-plan achromatic objectives: 4x, 10x, 40xs, 60xs, 100xs (oil immersion) with anti-fungal coating
Wide-field eyepieces: WF10x/22 mm with anti-fungal coating (2 units)
Abbe condenser N.A. 1.25 with iris diaphragm
Filters: blue, green, yellow
Immersion oil bottle
Fuse (2 units)
Microscope power cable
Dust cover
User manual and lifetime warranty

Caution:
Refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into a 220V outlet or vice versa without using a converter. Remember that mains voltage is 110V in the US and Canada, and 220–240V in most European countries.
