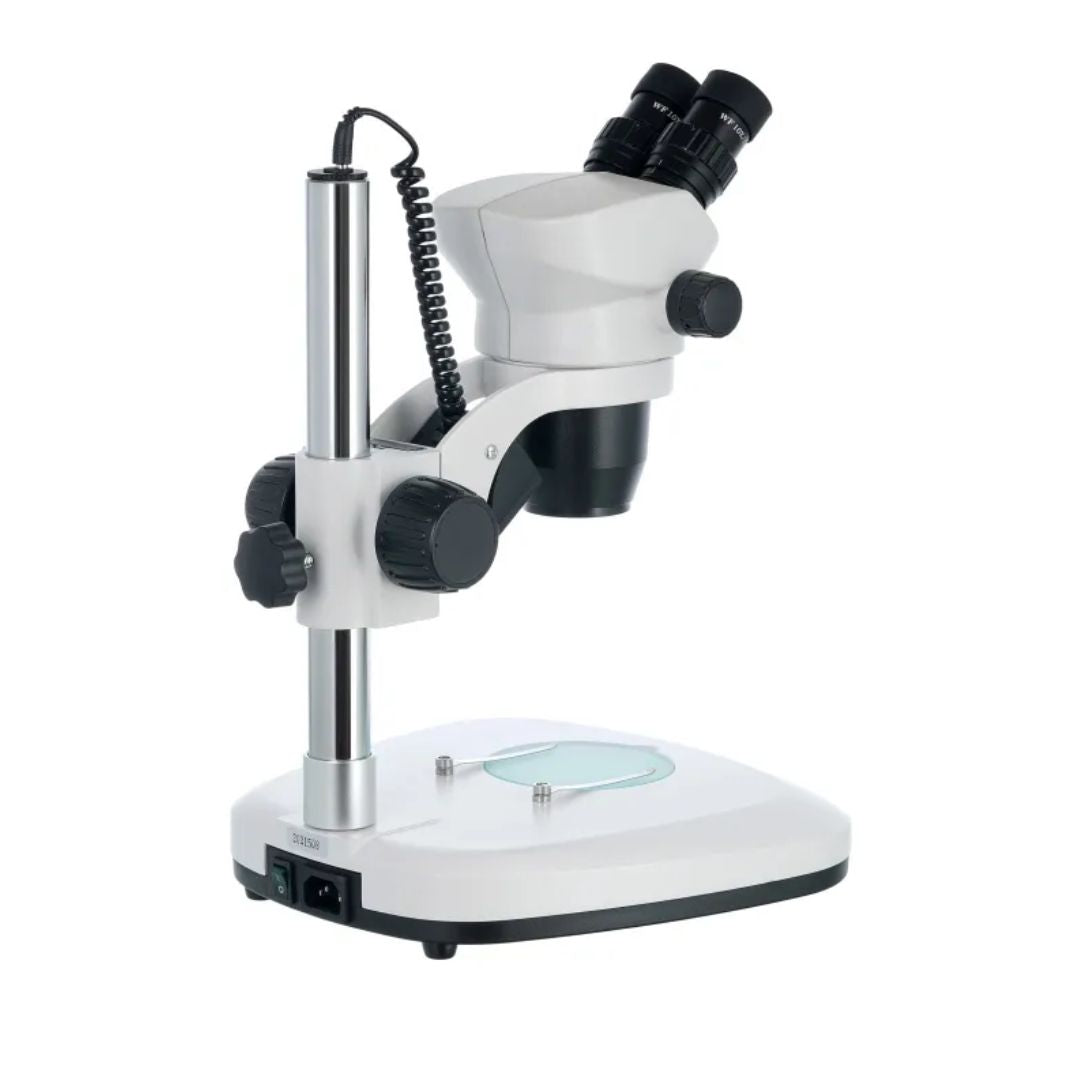

Levenhuk ZOOM 1B binocular microscope

The Levenhuk ZOOM 1B is an instrument microscope with a large working distance. It is suitable for studying geological samples, jewelry, biological objects, fabrics, circuit boards, and small mechanisms. This microscope can also be used for recreational and professional purposes, for example, in a service center or watchmaking workshop.

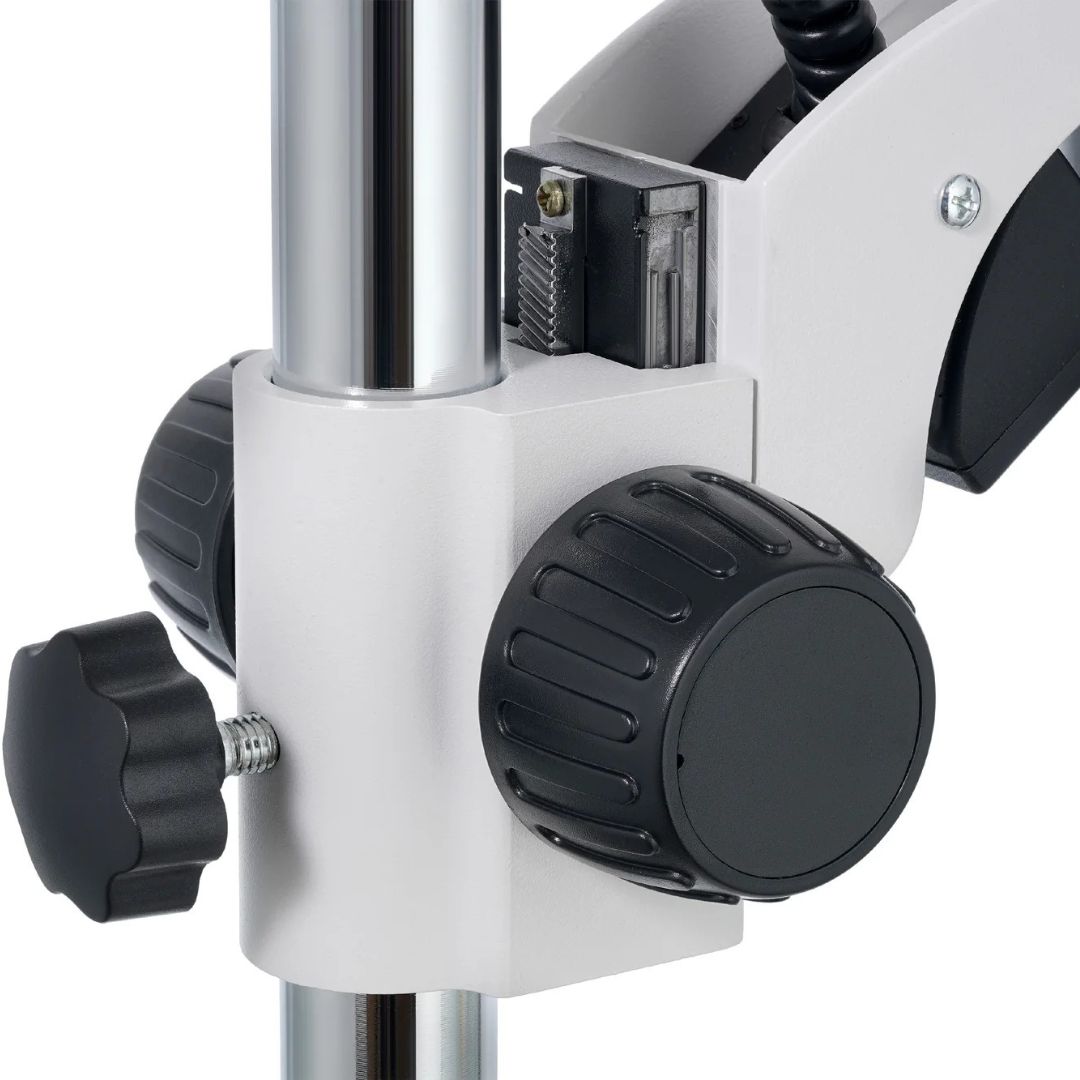

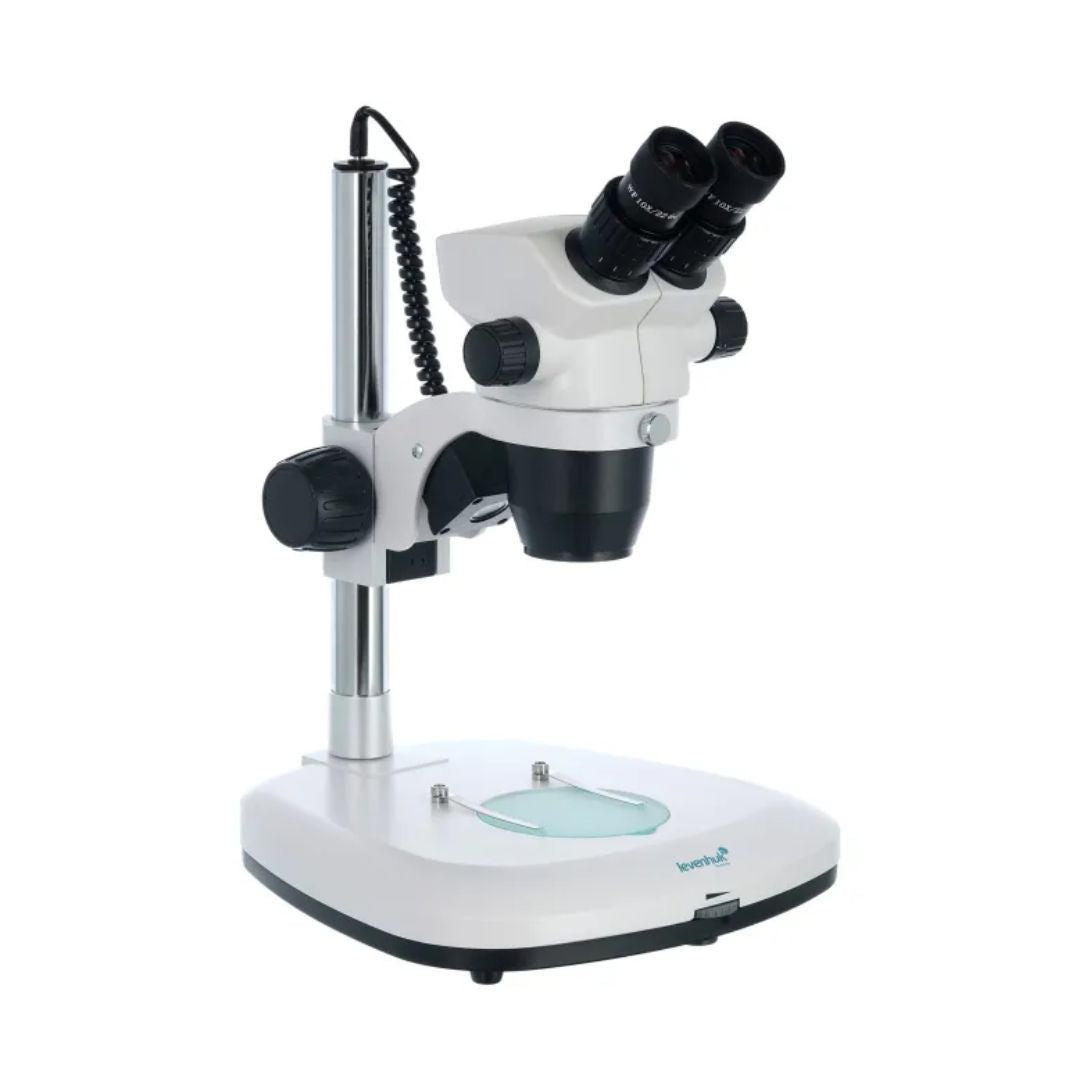

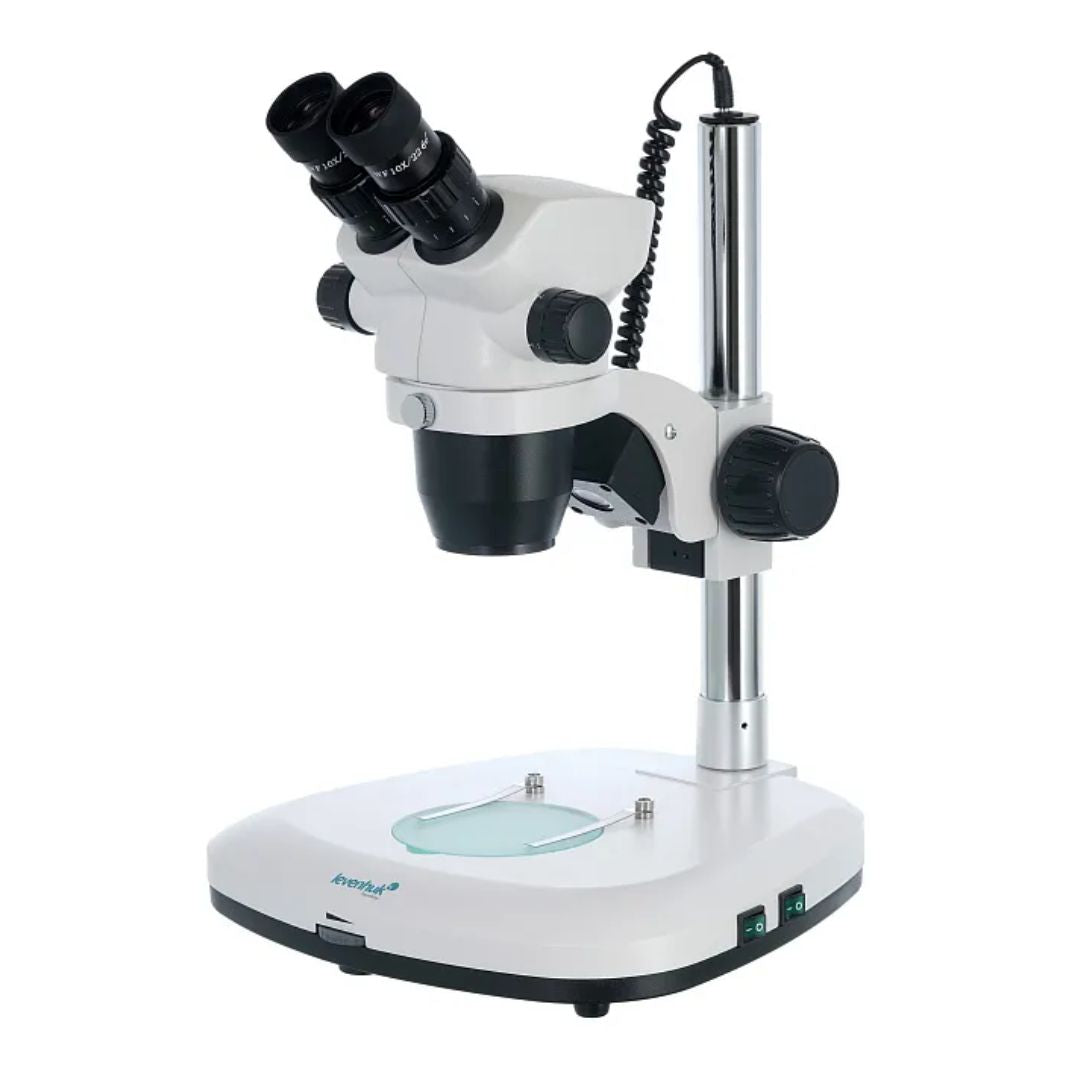

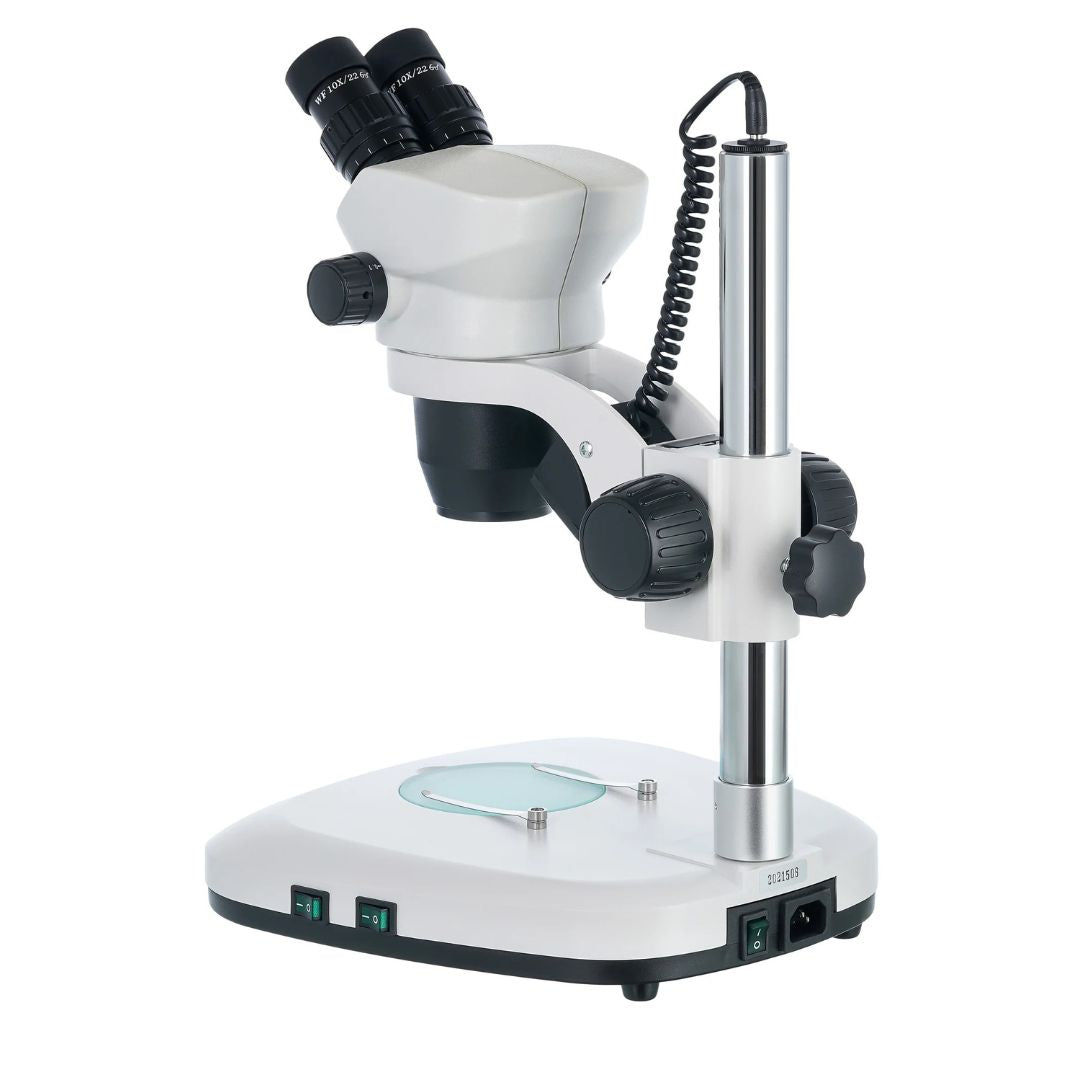

In terms of design, the microscope consists of a base, a vertical stand, and an optical head. You can observe with both eyes simultaneously; the head is slightly angled and can be rotated 360°. The kit includes two wide-field eyepieces with 10x magnification. The optical system is complemented by a zoom lens, which allows you to change the microscope's magnification gradually, rather than in steps. The overall magnification range varies from 7x to 45x. Coarse focus adjustment is possible.

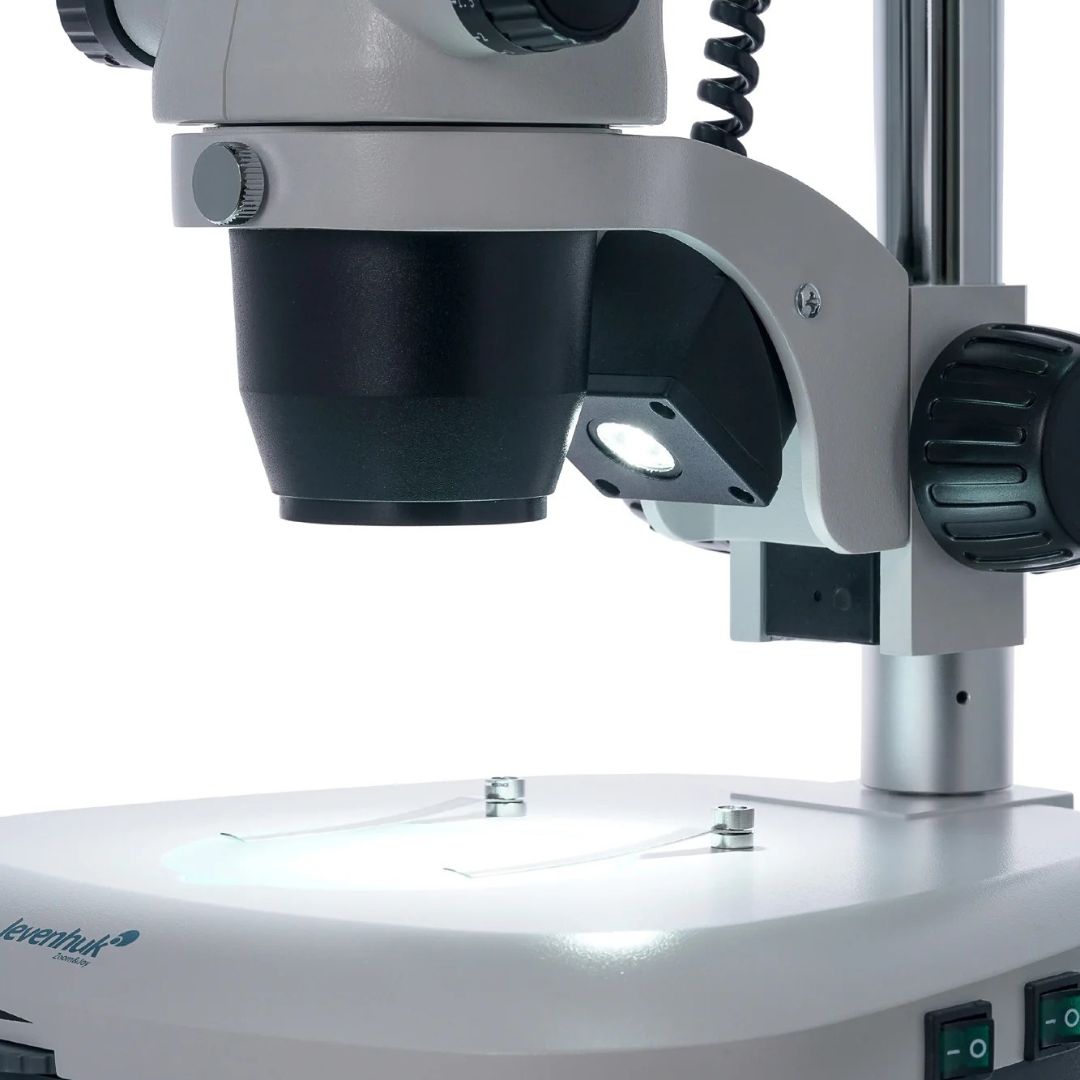

The microscope has two light sources: an upper and a lower LED lamp. This allows you to study samples of any transparency. The brightness adjustment makes it easy to choose the optimal illumination level for studying your samples. The illumination is powered by an AC power supply.

The body of the microscope is made of metal, which makes it durable and robust.

Characteristics:

• Stereoscopic image (3D)
• Gradual variable magnification within the range of 7 to 45x
• Rotating binocular head, inclined at 45°
• Large working distance: 235 mm
• Dual LED lighting, with brightness adjustment and AC power supply

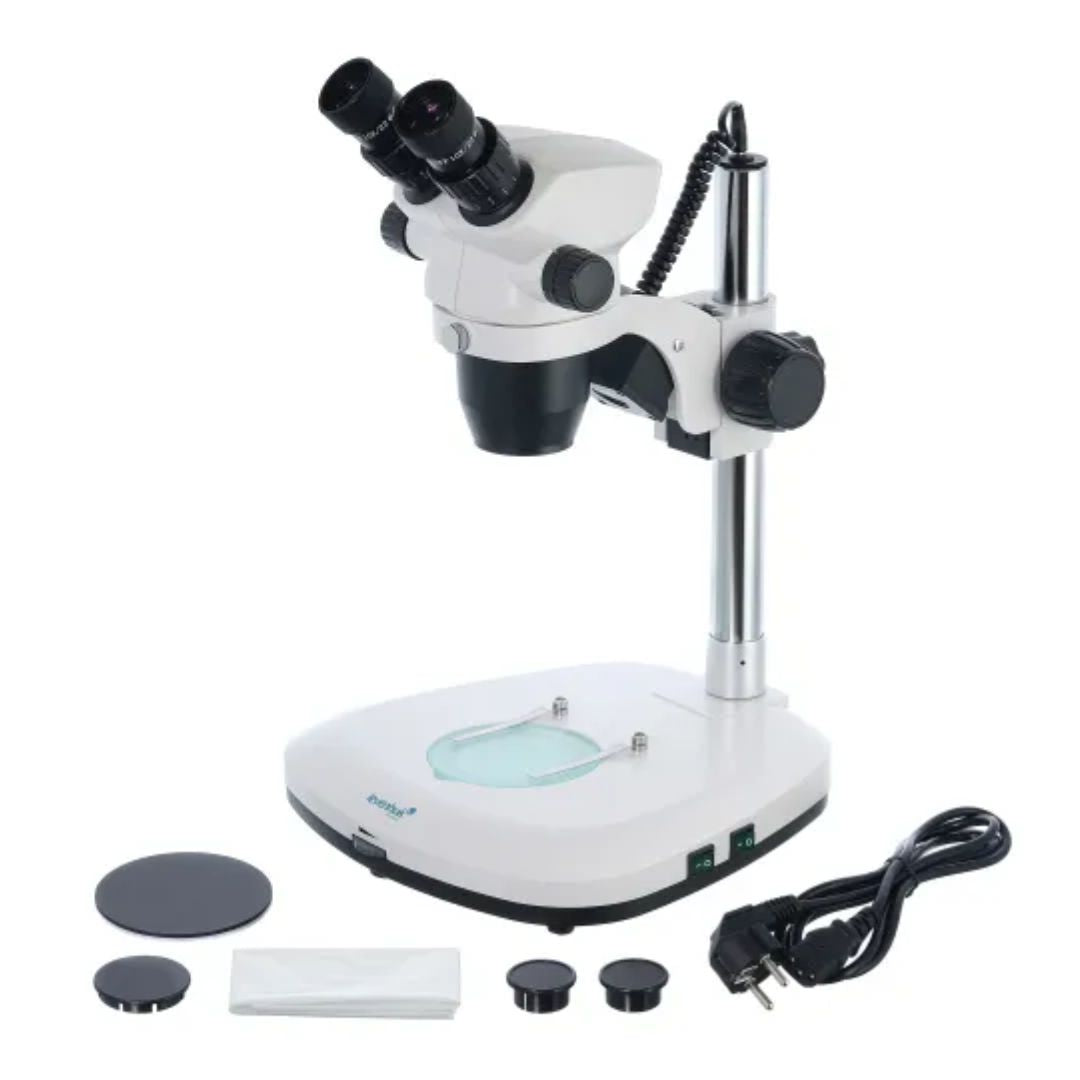

The kit includes:

• Microscope

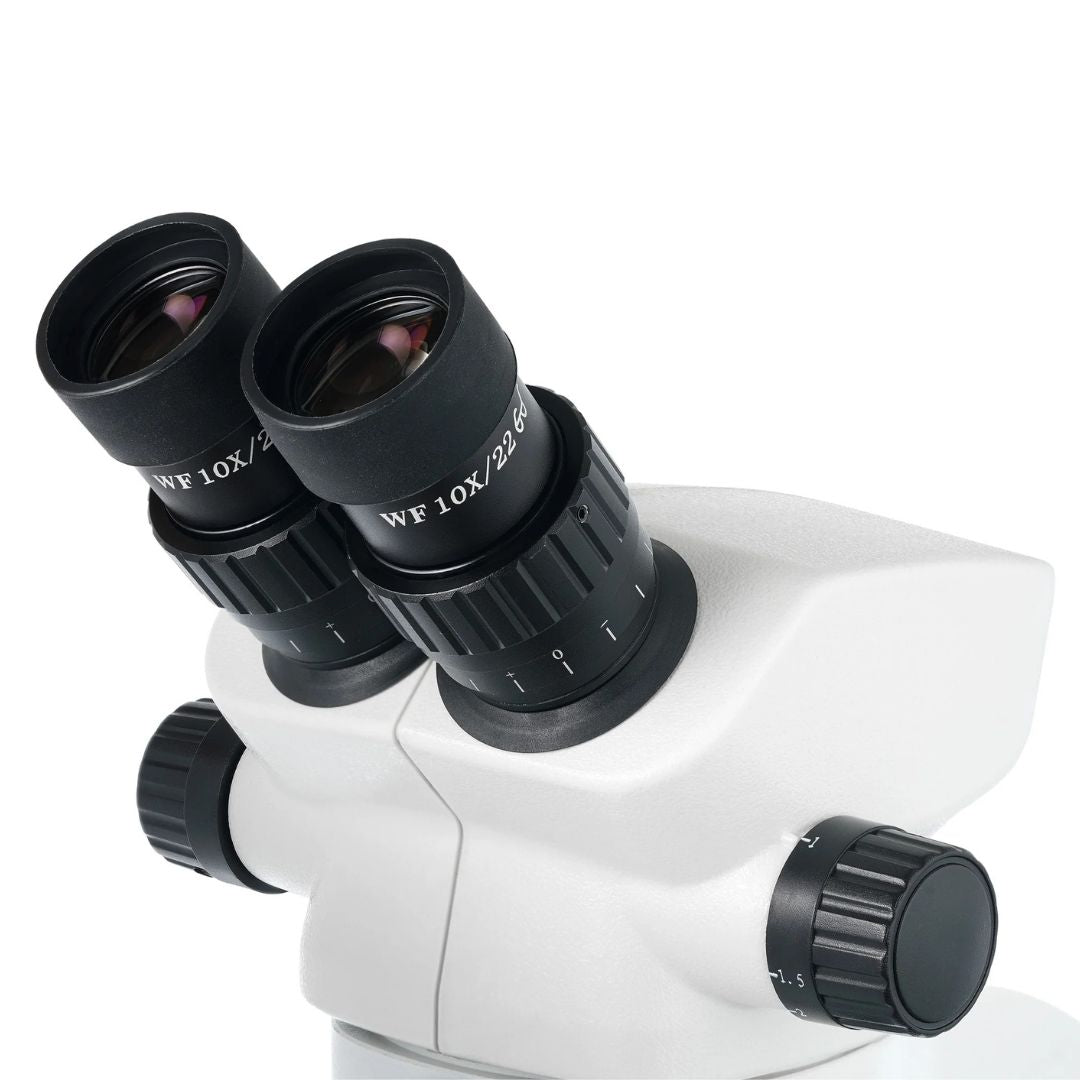

• WF10x eyepieces with dark circles (2 pieces)
• Zoom lens: 0.7–4.5x

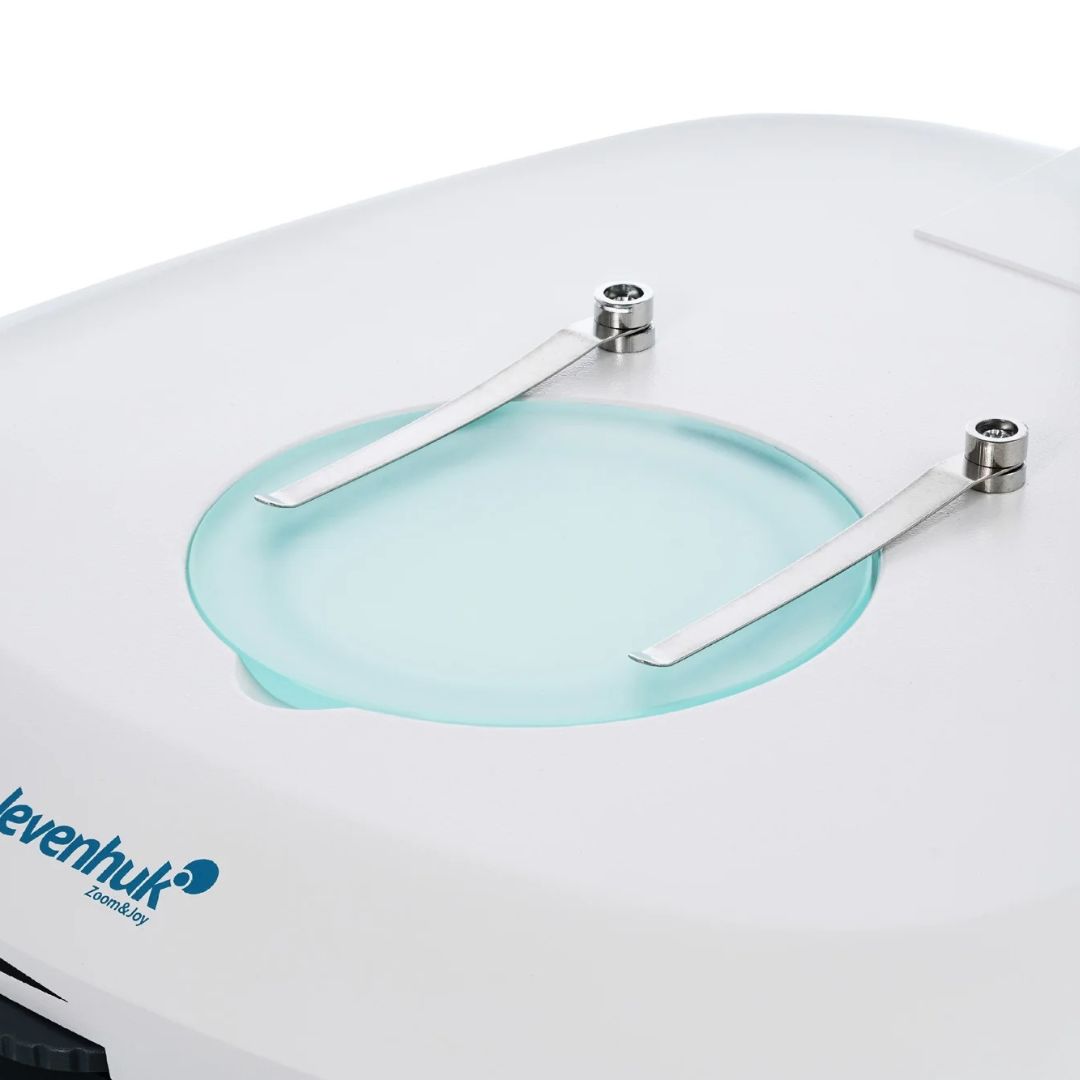

• Platter made of frosted glass
• Double-sided plate, black and white
• Power cord with AC adapter
• Protective cover
• User manual and lifetime warranty

Caution : Refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into a 220V outlet or vice versa without using a converter. Remember that mains voltage is 110V in the United States and Canada, and 220–240V in most European countries.
