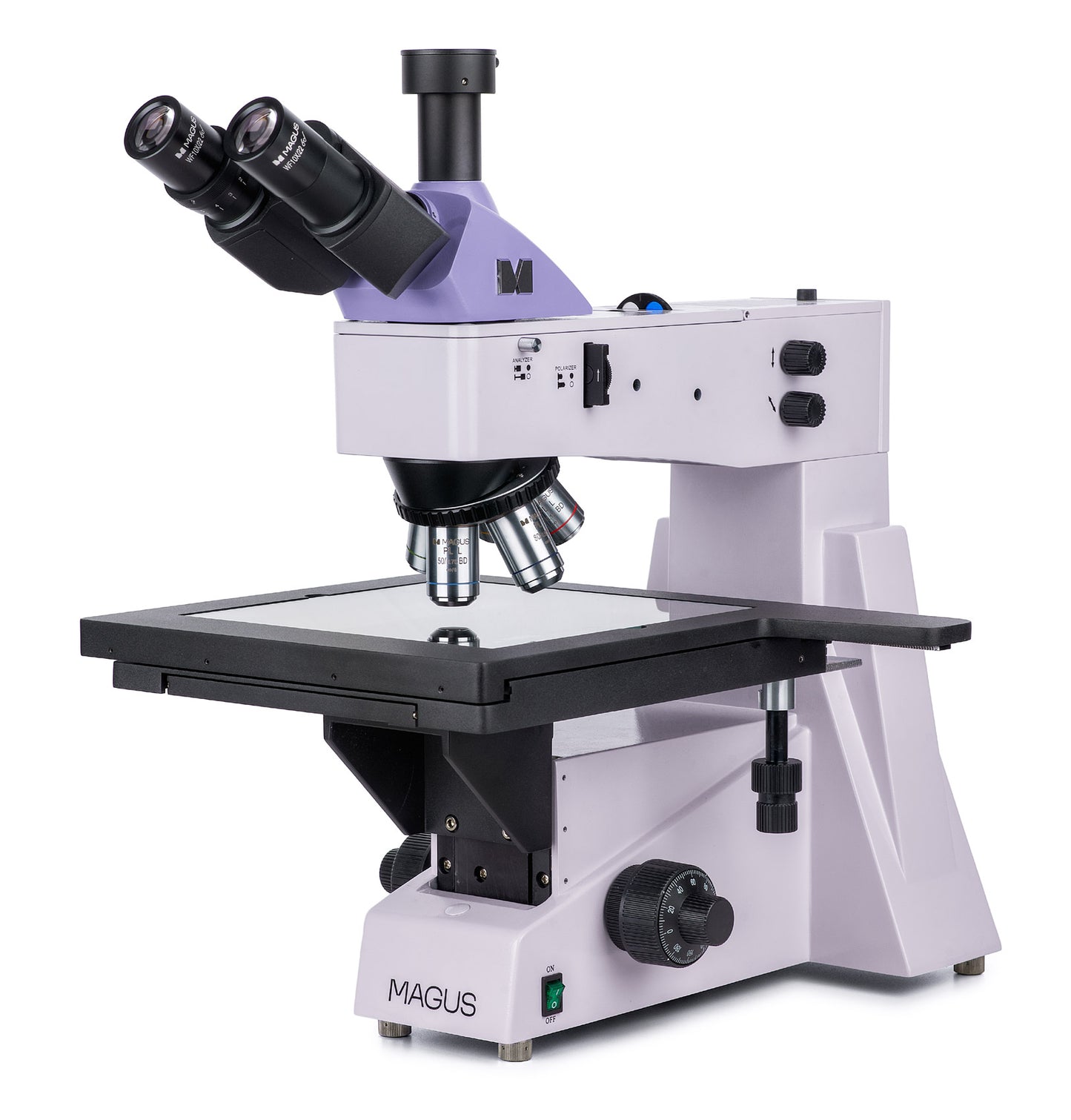

Metallurgical Microscope MAGUS Metal 650 BD

Metallurgical Microscope MAGUS Metal 650 BD

Regular price €8.269,95
Regular price Sale price €8.269,95
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock

🚚 Estimated delivery: 5 days

Quantity

The MAGUS Metal 650 BD metallurgical microscope is suitable for observing the surfaces of photoplates, integrated circuits, printed circuit boards, and other large and long objects. It is equipped with a large stage that can easily accommodate large samples and fine focusing with an increment value of 0.7 µm for high-precision observations made at high magnification. Brightfield, darkfield, and polarized light microscopy techniques are available. The microscope is suitable for quality control laboratories, research centers, and university departments.

Optics

The trinocular head has a vertical tube for installing a digital camera. A selection knob directs the light beam to the camera for taking photos and recording videos that can be displayed on an external screen. The camera is not included in the basic product configuration. There is a diopter adjustment ring on the left eyepiece for adjusting the image.

Plan achromatic objectives with the BD designation are designed specifically for brightfield and darkfield microscopy techniques. The objectives have a long working distance. The kit includes five objectives, one in each position of the revolving nosepiece. Any installed objective can be quickly replaced with an optional one, if needed. Infinity-corrected optics with a magnification power from 50x to 800x. The revolving nosepiece with the installed objectives is oriented inward: the user can see the objectives inserted in the optical path.

Illumination

The reflected light illumination system is designed to make all observations as detailed as possible regardless of the objective and microscopy techniques used. The light source is a 50W halogen bulb that produces bright, even, warm illumination. The Köhler illumination method can be used to adjust the illumination, color rendering filters and a polarization device (integrated analyzer and removable polarizer) are included. The light source and the aperture and field diaphragms can be centered. The illumination system also includes a darkfield device.

Stage and focusing mechanism

A special feature of the microscope is its large 280x270 mm stage, with a travel range of 204 mm along the X and Y axes. Focusing is adjusted by rotating the coarse and fine focus knobs. The focus knobs are smooth and secure, and thanks to the fine focus increment value, working with high magnification objectives is precise. The coarse focusing mechanism has a locking knob and a tension adjustment knob. The focus knobs are located at the base of the microscope, allowing the user to adopt a relaxed and comfortable position while using the microscope. They can rest their hands on the table instead of holding them in the air.

Accessories

To get the most out of the MAGUS Metal 650 BD microscope, you can purchase additional accessories: eyepieces, long working distance objectives for brightfield and darkfield techniques, calibration slides, digital cameras.

Key features:

  • Fine focus increment value of 0.7 µm; coarse focus has a locking knob and a tension adjustment knob
  • Large stage for easy observation of long and wide objects; wide stage travel range along two axes
  • Plan achromatic optics, trinocular head with two-position beam splitter (100:0 and 0:100), vertical tube for camera installation
  • Light source and field and aperture diaphragms can be centered, Köhler illumination method setup, polarization device, set of color filters, darkfield microscopy techniques
  • Illuminator with 50 W halogen bulb and 220 V power supply; adjustable brightness
  • Optional accessories

The kit includes:

  • Microscope base with power connection, reflected light illuminator, focusing mechanism, stage, and revolving nosepiece
  • Trinocular head
  • Infinity-corrected plan achromatic objective: PL L5x/0.12 BD WD 9.7 mm
  • Infinity-corrected plan achromatic objective: PL L10x/0.25 BD WD 9.3 mm
  • Infinity-corrected plan achromatic objective: PL L20x/0.40 BD WD 7.2 mm
  • Infinity-corrected plan achromatic objective: PL L50х/0.70 BD WD 2.5 mm
  • Infinity-corrected plan achromatic objective: PL L80x/0.80 BD WD 0.8 mm
  • Eyepiece 10x/22 mm with long eye relief (2 units)
  • C-mount adapter with 1x magnification power
  • Hex key
  • AC power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 10x/22 mm eyepiece with measuring scale
  • 12.5x/14 mm eyepiece (2 units)
  • 15x/15 mm eyepiece (2 units)
  • 20x/12 mm eyepiece (2 units)
  • 25x/9 mm eyepiece (2 units)
  • Infinity-corrected plan achromatic objective: PL L40x/0.60 BD WD 3.0 mm
  • Infinity-corrected plan achromatic objective: PL L60x/0.70 BD WD 1.9 mm
  • Infinity-corrected plan achromatic objective: PL L100х/0.85 (dry use) BD WD 0.4 mm
  • Digital camera
  • Calibration slides
