Levenhuk 400T trinocular microscope

Levenhuk 400T trinocular microscope

€459,95
€459,95
Sale Sold out
Taxes included. Shipping calculated at checkout.

🟢 In Stock

🚚 Estimated delivery in 5 days

The Levenhuk 400T model is a classic trinocular microscope with a binocular viewing component and a vertical tube for mounting a digital camera. This microscope is an excellent choice for a laboratory. It will be useful for a medical professional, microbiologist, biochemist, or any other specialist studying biological samples. The microscope uses achromatic optics and has a built-in LED lamp. Brightfield and oil immersion observation methods are available.

The microscope head is rotatable, making it convenient for group work. The binocular viewing component is inclined at 30°, making extended work with the microscope more comfortable. The 10x eyepieces provide a wide field of view, while the achromatic optics allow clear and sharp observation of small details. Objectives with magnifications of 4x, 10x, 40x, and 100x are mounted on a rotating turret. The overall magnification of the microscope ranges from 40x to 1000x. Note that the 100x objective of this microscope allows oil immersion observation. In addition, the 40x and 100x objectives feature a spring-retractable protective mechanism.

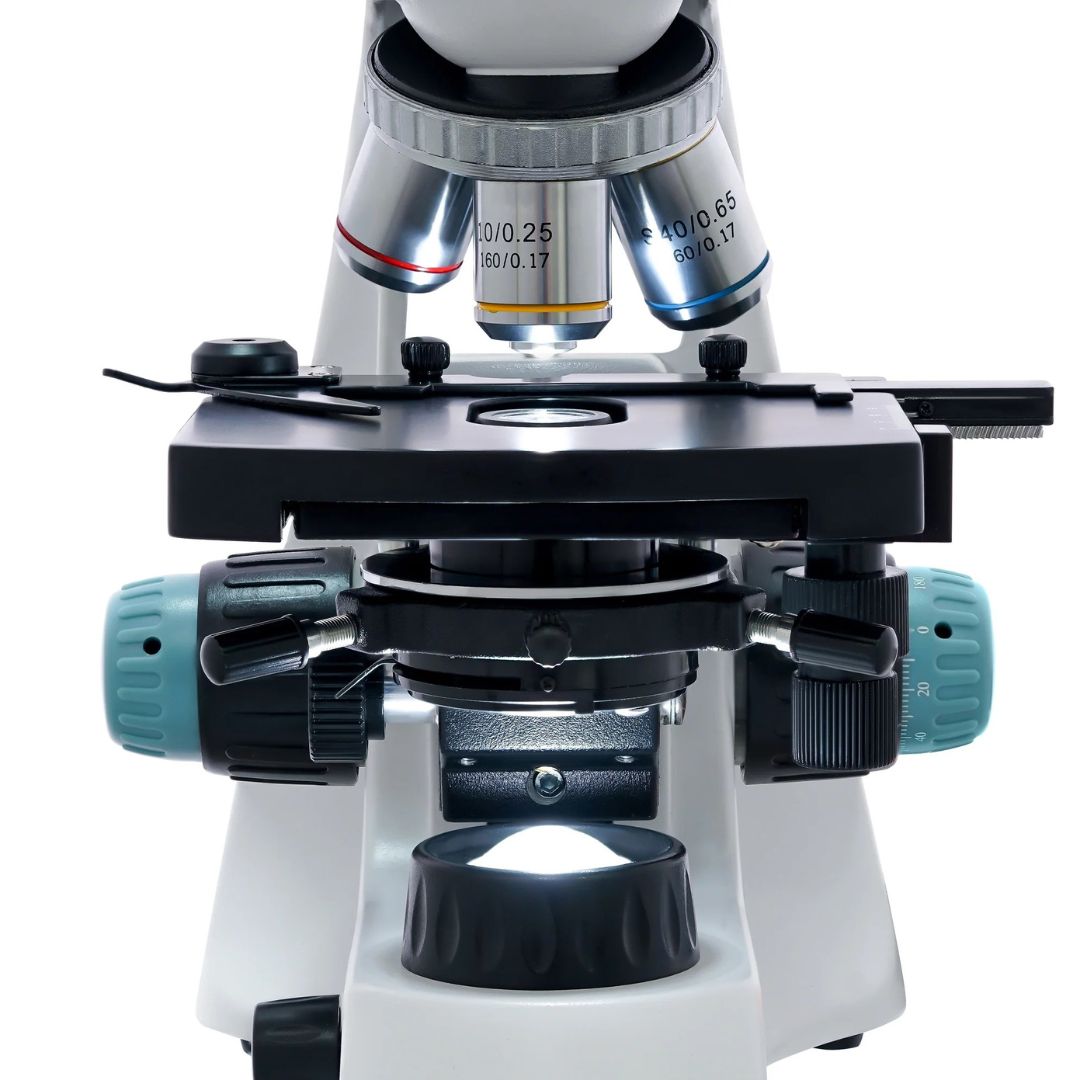

The stage is equipped with a mechanical micrometer. Next to the stage are fine and coarse focus controls. Directly below it is a brightfield Abbe condenser with an iris diaphragm and a filter holder. Below that is the illumination system, which consists of an LED lamp and a collector lens. The illumination has adjustable brightness and is powered by batteries or AC power. The microscope body is made of metal.

Characteristics:

  • Trinocular rotating head with a tube for mounting a digital camera
  • Widefield achromatic optics with 40–1000x magnification
  • LED bottom lighting, with collector lens and brightness adjustment
  • The power supply is variable: by batteries or AC power supply
  • Metal body, coarse adjustment and fine focus adjustment

The kit includes:

  • Microscope
  • Achromatic objectives 4x, 10x, 40xs, 100xs (oil)
  • WF10x/18mm eyepieces (2 units)
  • Abbe condenser NA 1.25 with iris diaphragm and filter holder
  • Charging power cable
  • C mount
  • Bottle of immersion oil
  • Filters: blue, green, yellow
  • Protective cover
  • User manual and lifetime warranty
Specs

Product ID 75421
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555005263
Package size (LxWxH) 42x21x29 cm
Shipping weight 4.06 kg
Guy biological, light/optical
Head trinocular
Optical material optical glass
Nozzle 360° rotating
Head tilt angle 30°
Magnification, x 40 — 1000
Eyepiece tube diameter, mm 23.2
Eyepieces WF10x/18 mm (2 pieces)
Goals Achromatic: 4x, 10x, 40xs, 100xs (oil immersion)
Revolver for 4 objectives
Interpupillary distance, mm 48 — 75
Platina, mm 115x110
Stage travel range, mm 55/20
Platen mechanical, two-layer
Dioptric adjustment ±5
Condenser Abbe NA 1.25 with iris diaphragm and filter holder
Diaphragm iris
Approach coaxial, approximate (12 mm) and fine (0.002 mm)
Body metal
Lightning LED
Adjusting the brightness ✓
Feeding 110–220 V, via AC adapter (included), 3 AA batteries (not included)
Power supply: batteries/built-in battery Yeah
Type of lighting source 1 W LED, with collector lens
Light filters blue, green, yellow
User level experienced users
Assembly and installation difficulty level easy
Application laboratory/medical
Lighting location lower
Research method bright field
Case/briefcase/bag included in the kit protective cover
