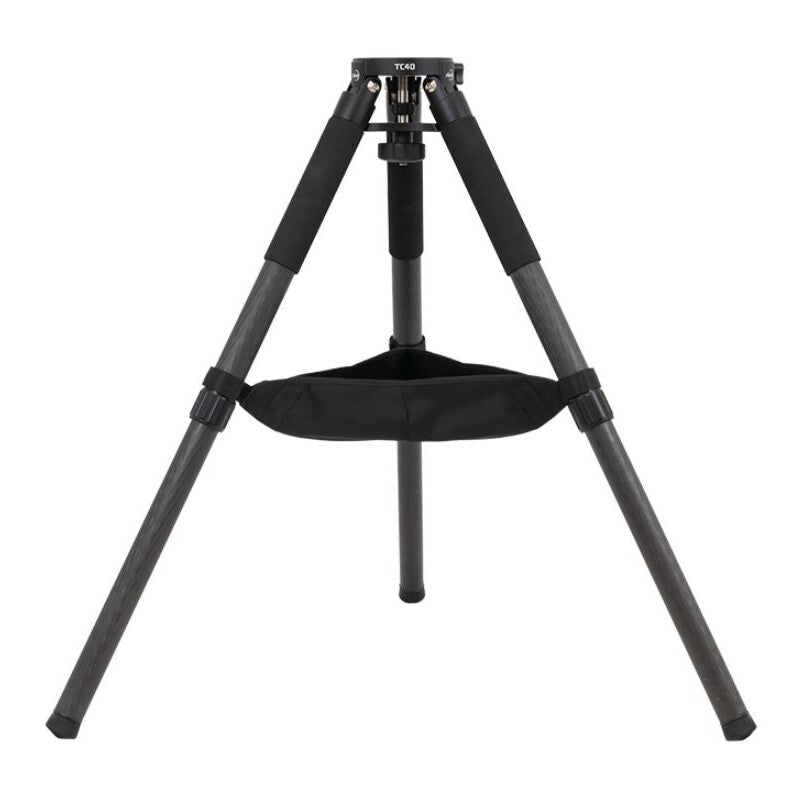

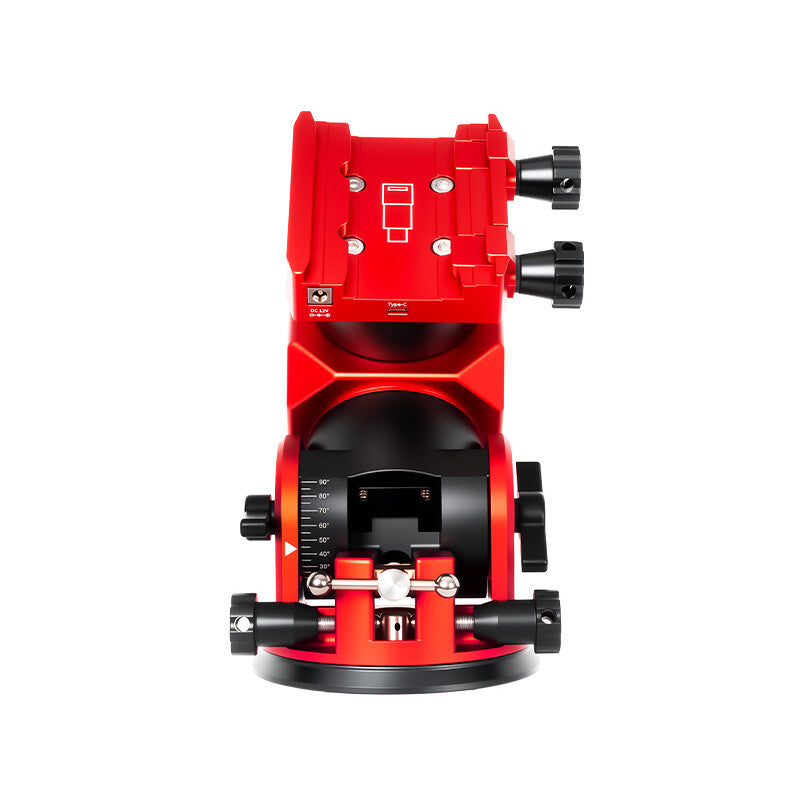

AM3N Harmonic Equatorial Mount + Tripod TC40

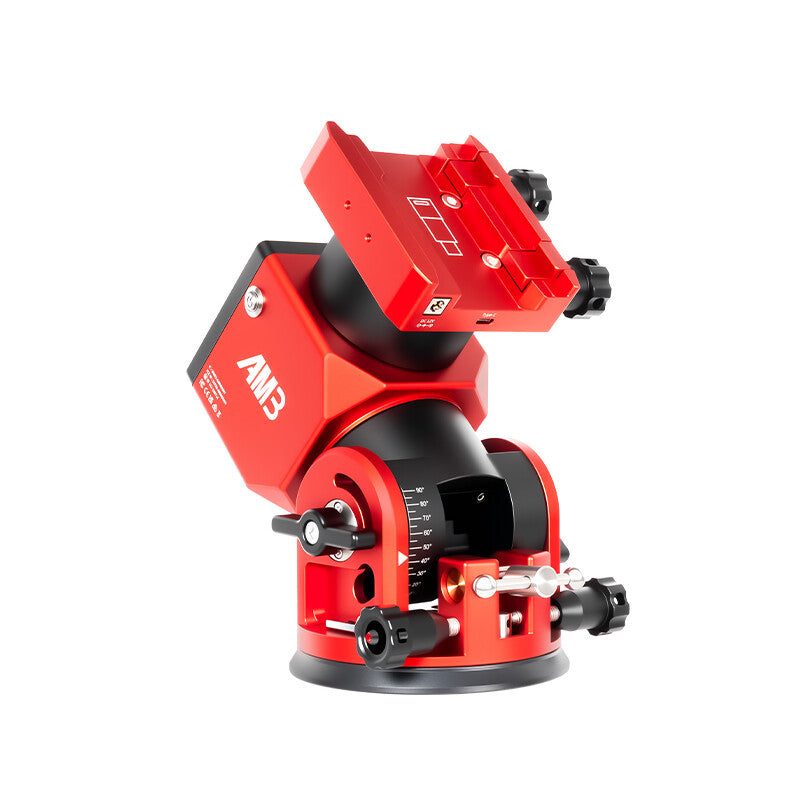

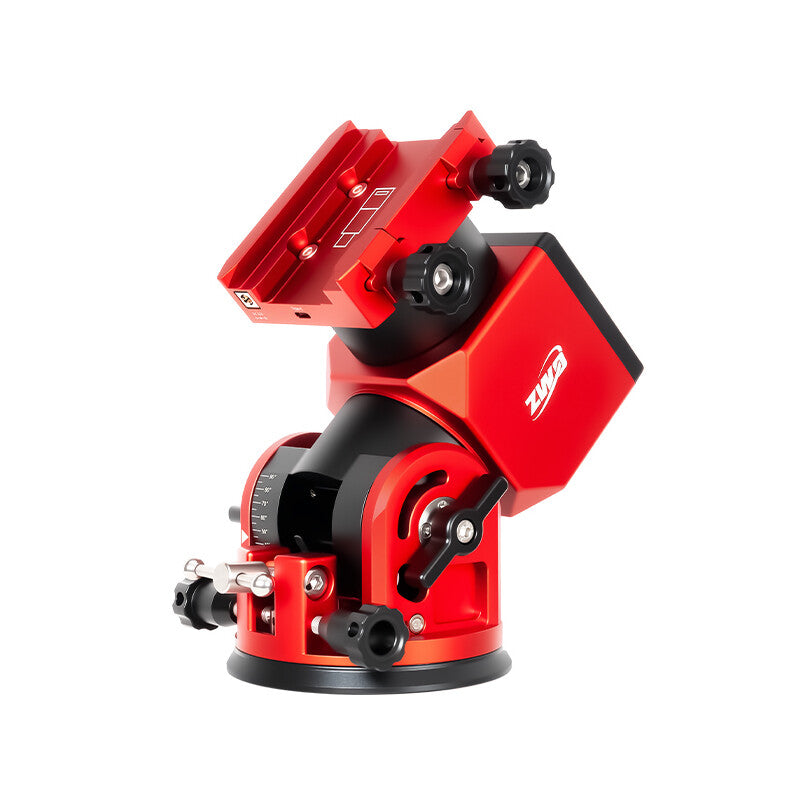

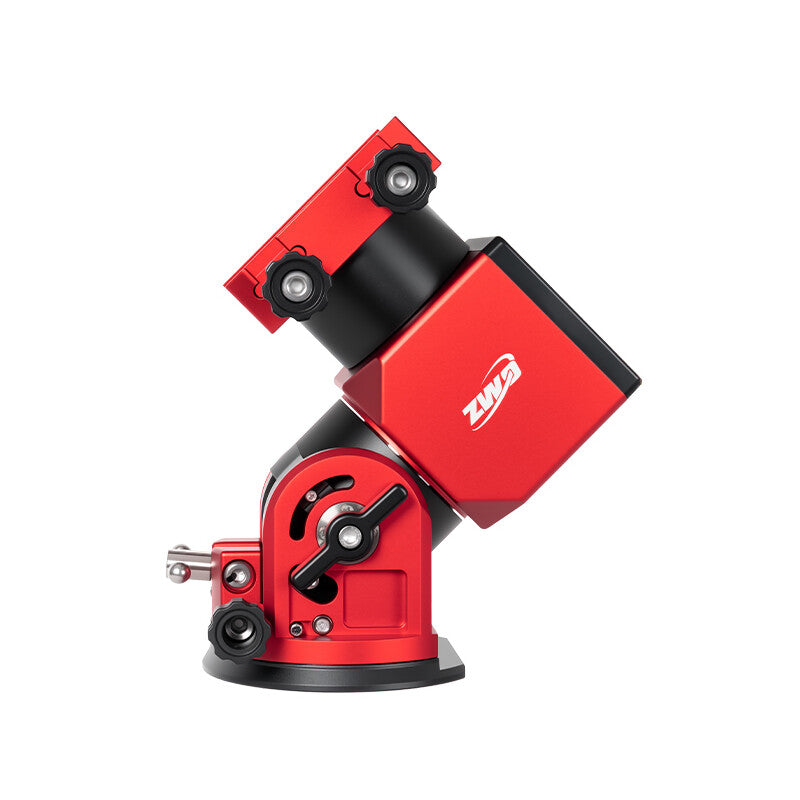

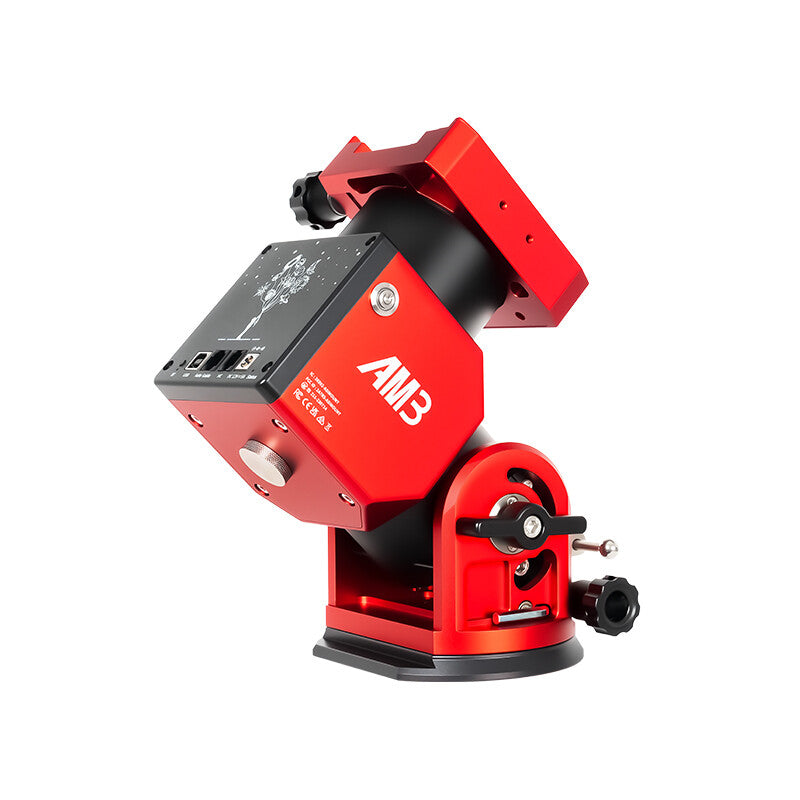

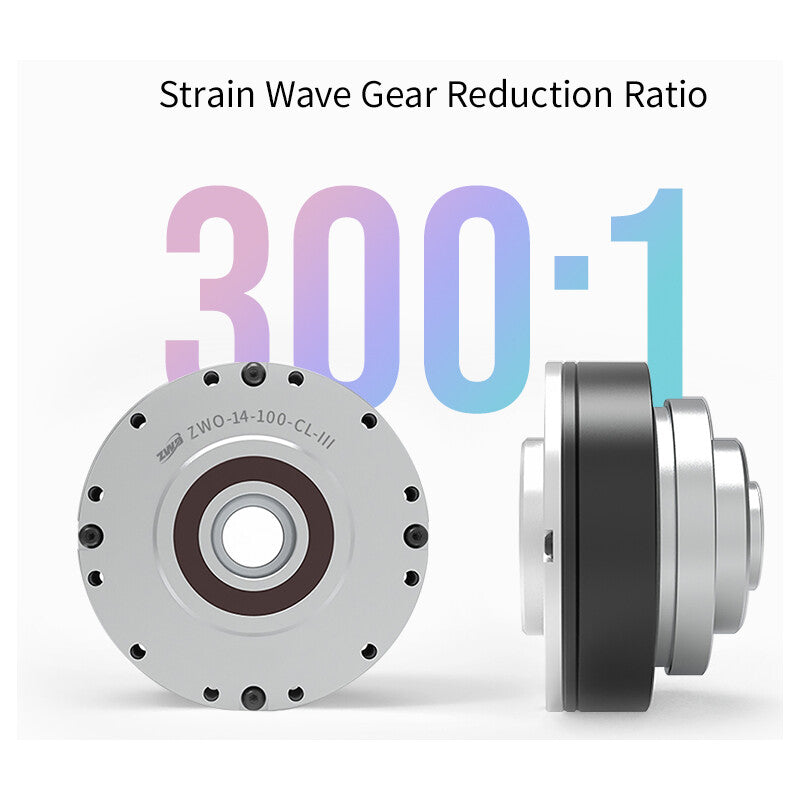

ZWO AM3 Equatorial Mount with Harmonic Drive Gears
ZWO presents the Harmonic AM3 equatorial mount, a portable model for astrophotography. This mount weighs less than 4 kg and can support telescopes up to 8 kg without a counterweight. With a counterweight and counterweight bar (not included), it can support telescopes up to 13 kg. Several years of development and numerous patents have culminated in this exciting mount.

Numerous functions and easy operation
The AM3 can operate in both equatorial and altazimuth modes. For astrophotography, use equatorial mode. The mount must be aligned as precisely as possible with the celestial pole. For visual observation or lunar and planetary photography, altazimuth mode is sufficient. It will be ready to use in just a few minutes. The status indicator always shows the mount's current mode: red indicates equatorial mode and green altazimuth mode.

Counterweights are no longer needed
German mounts typically require counterweights to balance the telescope. This is the only way to ensure proper operation. The AM3 uses robotic technology, so it doesn't need counterweights with telescopes up to 8 kg. This makes it lighter, more compact, and easier to handle. We only recommend counterweights with heavier telescopes to maintain balance between the mount and tripod.

Guaranteed consistent tracking
ZWO checks and measures each AM3 mount before shipping and guarantees a periodic error (PE) of less than +/-20 arcseconds. The periodic error occurs very slowly, giving the autoguiding system ample time to correct it. The mount also features an ST-4 autoguiding interface. Using ASIAir or other software, the PE can also be reduced electronically.

For use anywhere on Earth

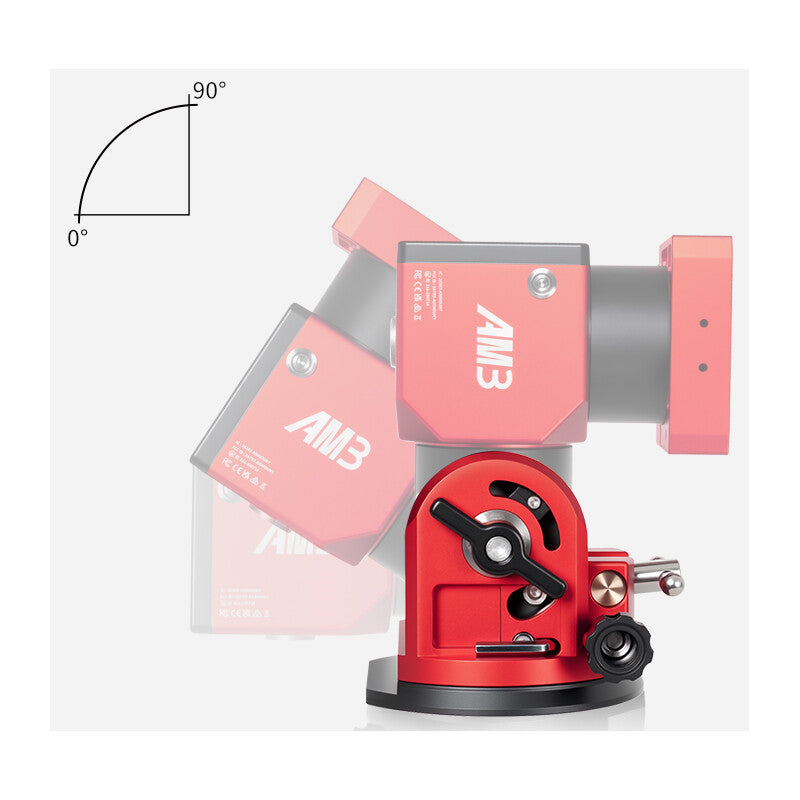

As you would expect from a true travel mount, the AM3 can be used anywhere on Earth, from the equator to the poles. It also fits in any carry-on luggage.

No more cables, thanks to Wi-Fi
All the mount's functions can be controlled via your mobile device. Of course, the AM3 works especially well with ZWO's ASIAir. With ASIAir, everything from the camera to autoguiding and the mount itself can be controlled via an app on your phone or tablet. The mount can also be operated with the hand controller, without needing your phone. Naturally, the hand controller also works wirelessly.

N as new:

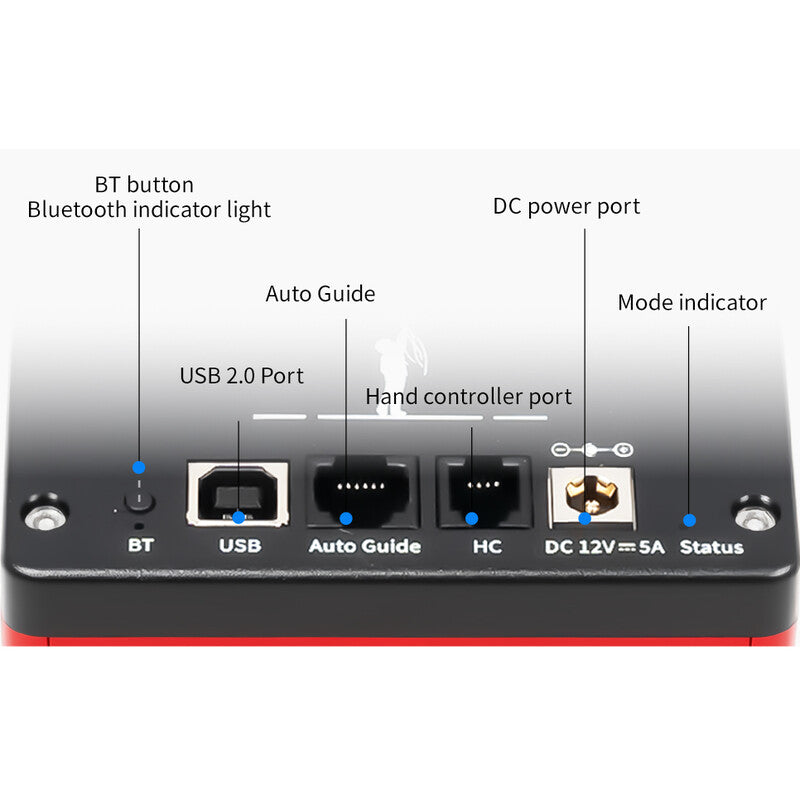

• Improved cable management: Like the AM5N, the AM3N now also features additional power connections and a USB Type-C port directly on the mount.
• The azimuth adjustment button It now features an opening for the hex key, allowing the mount to be adjusted with less effort.
• The holder for storing the hex key is now magnetic, so the tool stays secure.
• Slight weight increase: due to structural improvements, the weight has increased from 3.9 kg to 4.1 kg.
• Updated energy consumption: To improve load stability, power consumption has been adjusted as follows: 1. Tracking mode: 12V / 0.7A 2. GoTo mode: 12V / 1.3A (up to 1.8A under heavy load)
• Wider operating temperature range: The operating temperature range has been extended from -20°C to 40°C, allowing for better performance in cold environments.

Specs:

• Load capacity: 8 kilograms, with optional counterweight: 13 kilograms
• Low weight with high load capacity
• Control via smartphone
• AZ-EQ Dual Mount
• Bluetooth interface
