Sky-Watcher

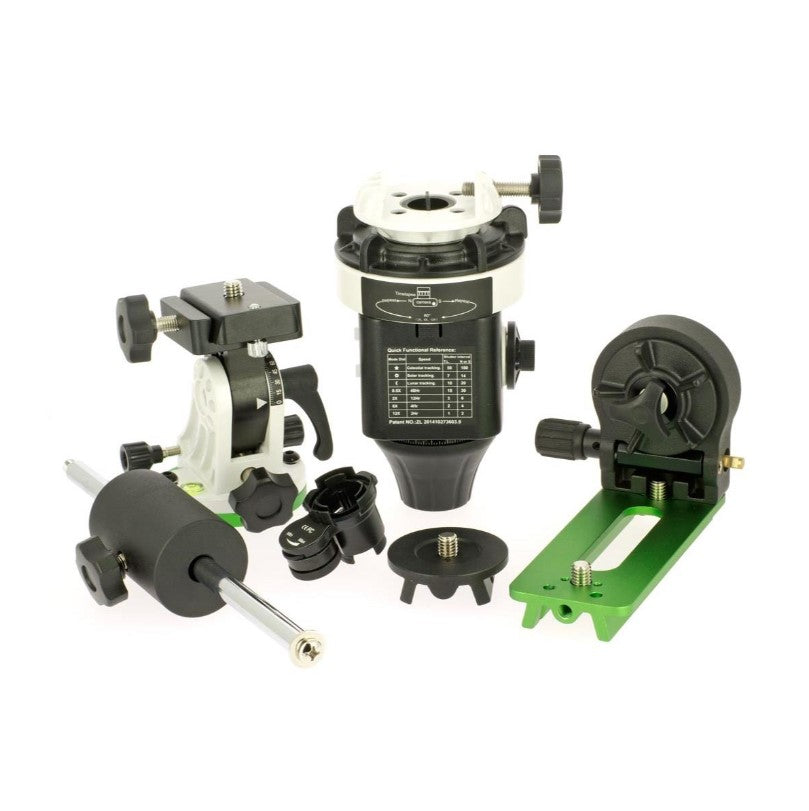

Sky-Watcher Star Adventurer 2i WiFi Mount (complete pack)

Sky-Watcher Star Adventurer 2i WiFi Mount (complete pack)

Regular price €449,00
Regular price Sale price €449,00
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

🚚 Estimated delivery: 5 days

Quantity
  • Controllable via Wifi through your smartphone
  • Complete package
  • Ultra-portable photography mount
  • Motorized tracking in Straight Ascent
  • Modular according to your needs (astrophoto, timelapse)
  • Load capacity 5 kg (telephoto/scope up to 70 mm)

After the success of the Star Adventurer Mini and its WiFi control , Sky-Watcher decided to implement this functionality in the famous Star Adventurer. The 2i version is therefore the combination of the classic version (even mechanical) with this remote control . Another advantage is that all customizable parameters (exposure time / interval / total number of photos / blur activation, etc.) can be stored in selectable preprograms on the mount.

The support can be controlled via WiFi through a free application available on smartphones (iOS/Android): the SAM Console. This application allows you to configure and control all the settings and functions of the support.

Everything you need to know about the Sky-Watcher Star Adventurer mount

Currently, frames for nomadic photographers are in fashion . It is for this reason that Sky-Watcher decided to offer its own mount with many advantages over its competitors. The Star Adventurer is equipped with numerous accessories and a large load capacity (5 kg)... at an extremely attractive price.

It has both an equatorial base to adjust the latitude when mounting the station (SW0328), the Star Adventurer motorized right ascension mount, the L-type mounting plate (SW0329) for orientation in variation, the bar and counterweight (SW0330), the polar base illumination of the scope (SW0333) and an additional plate in the congress field (3/8''). Light and compact, it is the ideal mount for the nomadic astronomer with various equipment (camera alone or with telephoto lens, 70 mm apo refractor or Mak90).

The ideal and versatile travel box

Versatile, the Star Adventurer can be used for both long exposure astrophotography and daytime photography (to create time lapse, for example). The mount itself, like the equatorial base, can be adapted directly to any tripod (with a 3/8" or 1/4" thread using the adapter included as standard).

Using the L-shaped mounting plate, lift the optical tube and add the 1kg bar and counterweight. At the end of the plate, the fixing system allows the direction of the optical tube to be oriented efficiently and comfortably (allowing the declination to be adjusted). It is the AD motor (single axis motorization) that will drive everything. Different tracking speeds are available: sidereal, semisidereal speed, lunar and solar. For the time periods, several are already pre-programmed (12h/4h/2h per revolution).

To facilitate station setup, the polar viewer is directly integrated . Lighting comes standard, regardless of the configuration chosen. After proper setup, tracking will be of good quality thanks to a large 86mm diameter sprocket (compared to load capacity). For APO glasses wearers, an auto-guidance port is even provided to further improve training quality.

The equatorial base allows for precise latitude and azimuth adjustment. Attaches to any mount with a 3/8" male thread (or with the included adapter for 1/4" thread). It weighs 500 g and can support 5 kg (Star Adventurer mount + main instrument). A Vixen-type female dovetail accommodates the mount.

Specifications

Mount Sky-Watcher Star Adventurer 2i Modular German Equatorial Mount
Motorization dc servo motor
Loading capacity 5kg (all included, with counterweight)
Cogwheel Aluminum (alloy) construction
Diameter 86 mm, 144 teeth
Endless screw 13mm diameter brass.
Tracking Type Sidereal tracking, half sidereal tracking, lunar (mean lunar speed), solar
Usable in both hemispheres, North and South
Time-lapse: A complete tour in 2 hours, 4 hours or 12 hours
polar visor Integrated (lighting included) - Approximately 7° field
Remote connection Integrated Wi-Fi
Ports Autoguidance ST-4
mini-USB
SNAP (APN activation)
Counterweight 1kg (included)
Food Battery case included (4xAA not included - autonomy up to 72 hours at 20°)
Or external DC 5V (mini USB)
Color White and green
Fixing type Congressional Threaded Hole (3/8"-16 UNC)
or Kodak threaded hole (1/4"-20 UNC) with conversion insert supplied
Dimensions 173.5mm x 113.3mm x 96mm
Weight Frame alone: ​​1kg

Items delivered

  • 1 Sky-Watcher Star Adventurer 2i mount with integrated polar viewer
  • 1 equatorial base for Star Adventurer
  • 1 standard L-shaped mounting plate
  • 1 counterweight bar
  • 1 counterweight
  • 1 Platinum in Congress Step (3/8")
  • 1 polar scope illumination
