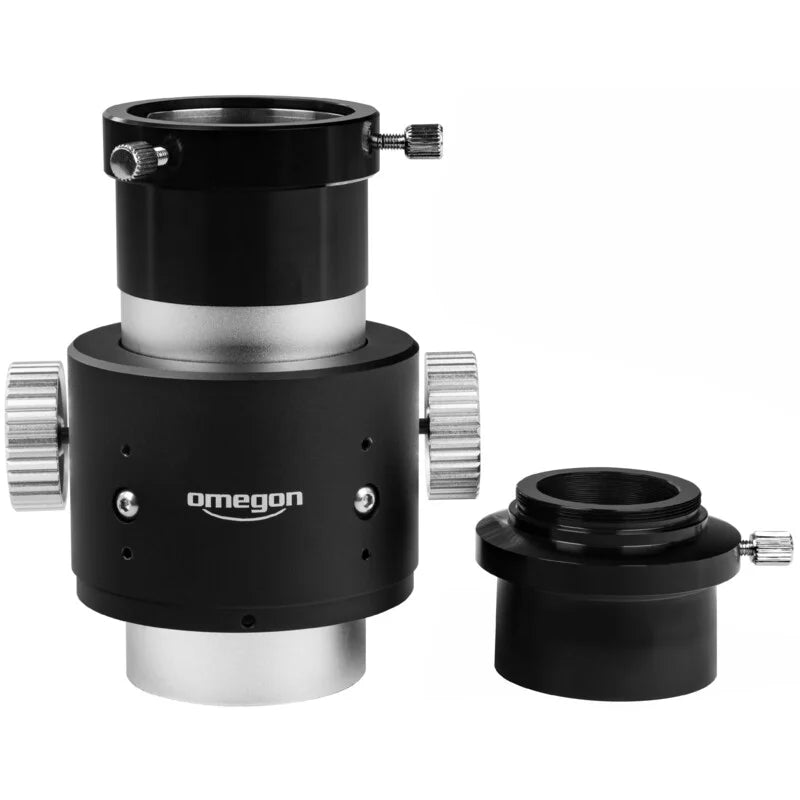

2" Crayford focuser for Newtonian telescopes

Economical and adjustable 2" Crayford focuser

We all want sharp images in the telescope. The best way to achieve this is with a Crayford. This focuser is smoother and more precise than a standard one, it is also adjustable and very economical. Now you can get sharper images of the sky with your telescope.

Summary of its advantages:

• 2" focuser mounted on ball bearings for more precise observation and photography
• An easier approach to finding the right spot without going overboard
• Adjustable focus to align exactly with your telescope and avoid optical aberrations from the start
• 2.5 kilos of load capacity, to be able to work with large eyepieces and heavy cameras
• Accurate focus, even at higher magnification.

For the camera and for each eyepiece

Attach accessories weighing up to 2.5 kg. It can support even the heaviest eyepieces and many cameras reliably. And what's more, the locking screw allows you to fix the spotlight at any time and maintain its position.

• Full metal construction
• 78mm diameter connection
• 35mm focus distance
• Height: 67 mm to 2" adapter
• 2" to 1.25" adapter with filter thread included
• 50.5mm free focus path
• Weight: 600g

Adjustable

It is not common to find an adjustable focuser for this price. The improved version of the Crayford allows you to focus more precisely on the optical axis of the telescope and obtain a better image. In addition, the friction can also be adjusted, so it can be used even with heavy accessories. The handling is still very comfortable.

For 2" or 1.25" fittings, the Crayford is all you need

The 2" Crayford focuser has a spring washer clamp, with which eyepieces and adapters can be held flat. This ensures a firm hold and smooth handling of your accessories. A 2" reduction adapter to 1.25" makes it compatible with all 1.25" eyepieces, into which you can also screw 2" filters.

Switch to a Newtonian telescope

To be able to attach your new focuser, you only need two additional adapters.

- Tube adapter Art. No. 33360 , with holes spaced 86 mm horizontally and 83 mm vertically

- Reducer from 80 mm to 78 mm Art. No. 51120.
