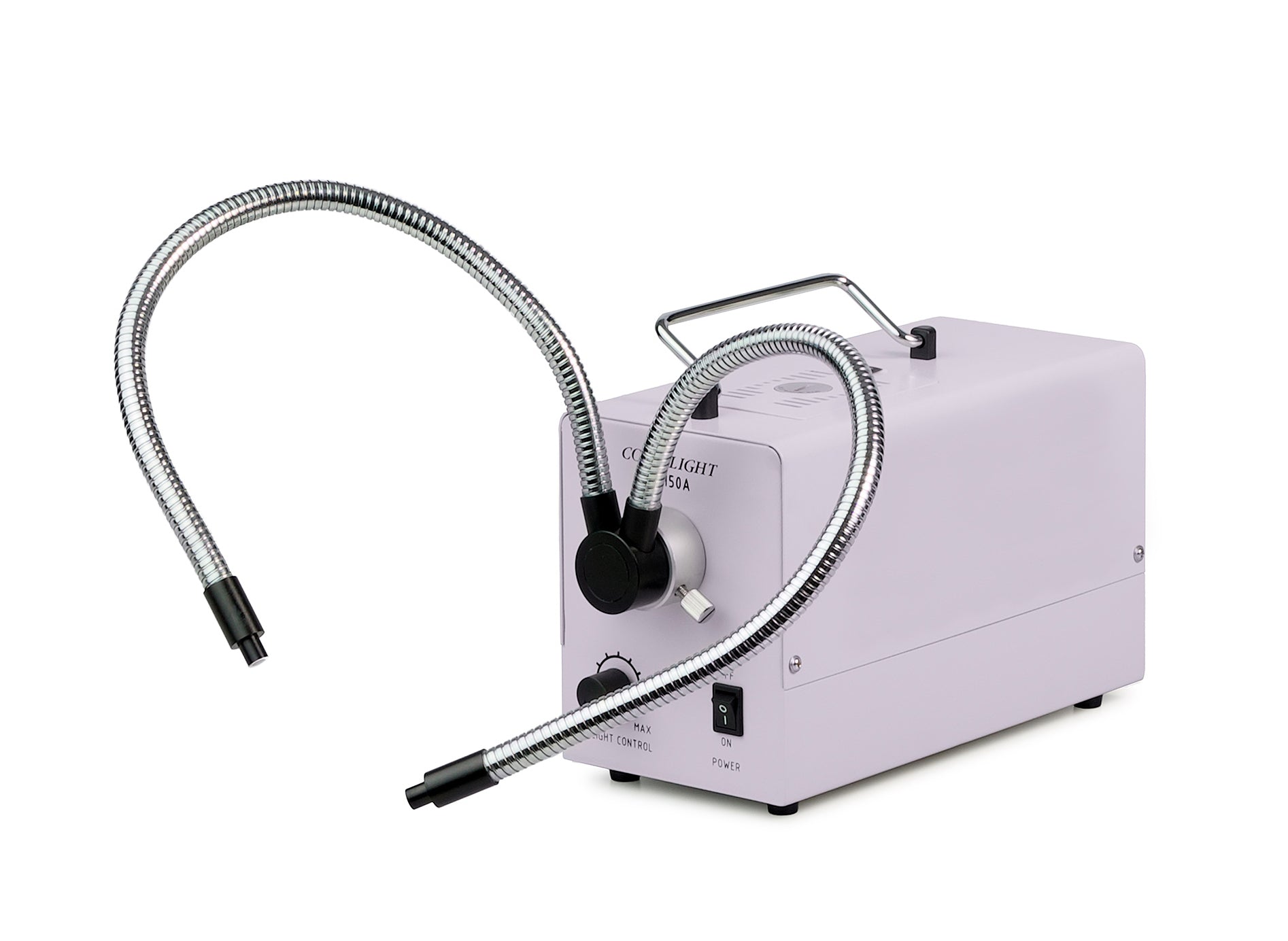

MAGUS CLI18T Cold light source with double light guide

MAGUS CLI18T cold light with double light guide
Reflected light illuminator for CMO stereomicroscopes

The MAGUS CLI18T illuminator is designed to illuminate samples with oblique light, allowing for visualization of relief, scratches, cracks, and other surface defects due to the clear distinction between light and shadows. The illuminator's design prevents any heating or thermal damage to the sample.

The light source is located in the lamp holder. The light flux strikes the object through the flexible double light guide. The position of the light guide is adjusted to create the desired light angle and allows for obtaining the necessary light and shadows for research. It maintains its preset shape and does not need to be fixed.

Brightness is adjustable. AC power supply.

Compatibility:
MAGUS Stereo 7B Stereomicroscope
MAGUS Stereo 7T Stereomicroscope
MAGUS Stereo 8B Stereomicroscope
MAGUS Stereo 8T Stereomicroscope
MAGUS Stereo 9T Stereomicroscope
MAGUS Stereo A6 Stereomicroscope
MAGUS Stereo A8 Stereomicroscope
MAGUS Stereo A10 Stereomicroscope
MAGUS Stereo A18T Stereomicroscope
Other stereomicroscopes

Package:
Flexible and adjustable double light guide
Lamp with reflector
Lamp housing
Power cable

Specifications
Lamp type: Halogen bulb
Illuminator power, W: 150
Operating voltage, V: 21
Light guide length, mm: 46
Brightness adjustment: +
Power supply: AC power supply, 220 V
Operating temperature range, °C: 0… 40
Operating humidity range, %: 20… 85
