1.25'' adapter for cameras

Omegon 1.25'' adapter for cameras: an adapter for focal and projection photography

This adapter for cameras do the fixed union between your SLR camera and your telescope. With it you can immediately start taking out focal or projection photographs.

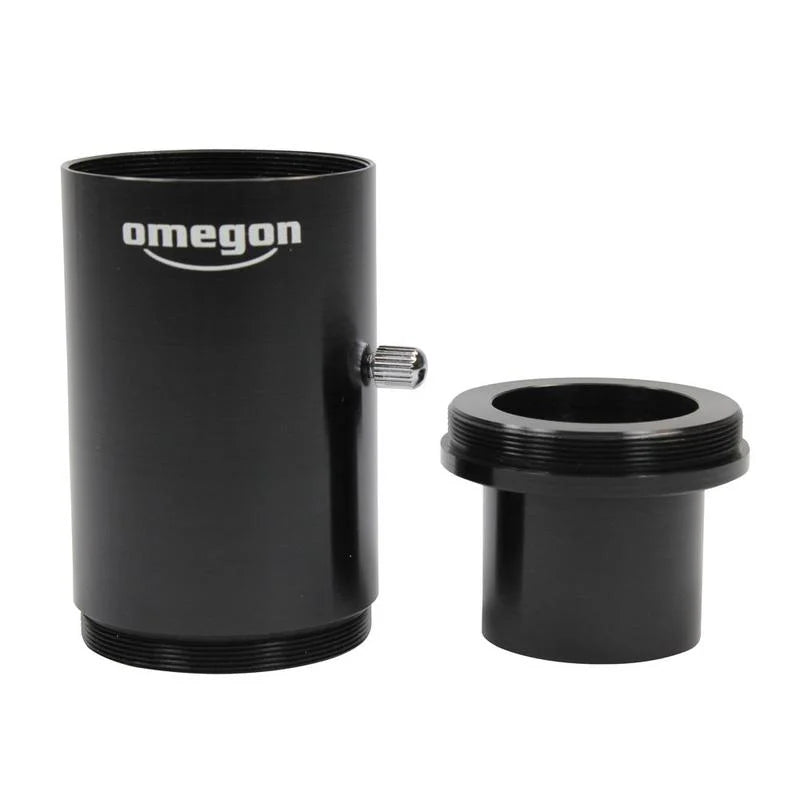

The adapter consists of two segments that can be easily removed:

1. The smaller front piece is equipped with a 1.25" connection at the end of the telescope. At the rear end there is a T-2 thread . This photo adapter can be used for example to Moon, Sun and deep space objects. Here you can directly mount a T-2 ring . This adapter element is very slim and requires an optical distance of only about 9mm. The 1.25" element has a length of 25mm.

2. The second segment of the adapter shows a substantially longer length. It is used for ocular projection. Through it you can photograph, for example planets, different craters of the Moon or sunspots . The inner tube can accommodate 1.25" eyepieces up to 38mm outer diameter. It is possible to fix the eyepiece using a side slotted screw. This segment has a length of 67mm. At the end of the chamber is a T-2 thread to mount the T-2 ring. Using different eyepiece focal lengths it is possible to obtain the desired lengthening effect.

The advantages at sight:

• Very easy to use, also suitable for beginners
• It is possible to separate the adapter into projection and focal adapters
• Compact construction
• Each element is equipped with a T-2 thread

Specifications
